Snom PA1 Paging Adapter Settings for ringing and overhead external paging

Modified on Wed, Sep 8, 2021 at 1:54 PM

The SNOM PA1 Manual is ATTACHED

See STP-1 Attenuator Manual Attached

Speaker Output is 8 Ohms

Line Level such as Panasonic Paging Port is 600 Ohms

So you typically need a converter to convert the speaker level 8 Ohm to Line Level 600 Ohms

You can use this attenuator for with Bogen or the Valcom V-1095 for Valcom Applications.

USER GUIDE IS ATTACHED

NOTE: you can use both peered extension and Multicast for paging.

ONLY the changes noted appear to be required. ALL other settings leave at default.

To locate the ip address of the unit see the attached quick start guide.

Connect speakers or headphone to the unit

NOTE: Press the "IP/Reset" button briefly to hear the current IP Address of the snom PA1 (in English) over the connected loudspeaker or in the headset.

Web server

default user & password

Username: admin
Password: 0000 (Zeroes)

We will set our password to OLD (larry88)

New Password (Larry1988#)

Snom PA1 Settings for ringing and paging
Firmware: snomPA1-SIP 8.7.3.25.9

Status > System Information

Snom PA1 Settings for ringing and paging
Firmware: snomPA1-SIP 8.7.3.25.9

>>>> To Set SNOM for Paging via dialing a peered extension with Auto Answer.

Setup > Identity 1 > Login for Cloud9Phone Accounts

Login Tab

Field	Setting	Notes
Identity active	On
Displayname	Extension 0000	Any friendly name. This is for your reference only
Account	Example: Sip0000_pbxcontext	SIP User Name
Password	Example: 8ad78ad7f6a8765a8d	SIP Password
Registrar	Fe-aaaa-1234.cloud9phone.com	SIP Server
Authentication Username	Example: Sip0000_pbxcontext	SIP User Name
Ringtone		Pick your preference

Setup > Identity 1 > Login for Sonictel PBX Accounts

Login Tab

Field	Setting	Notes
Identity active	On
Displayname	Extension 0000	Any friendly name. This is for your reference only
Account	Example: 3103	SIP User Name
Password	Example: 8ad78ad7f6a8765a8d	SIP Password
Registrar	accountname.21757.service	SIP Server ex; sonictel.21757.service or marshall.21757.service, etc.
Authentication Username	Example: 3103	SIP User Name
Outbound Proxy	21757.hpbx.outboundproxy.com	Outbound Proxy Address

SIP Tab

Field	Setting	Notes
Auto Answer	on	On = Paging, Off = Ringing
Server Type Support	Asterisk
Proposed Expiry: (s):	60	this field is just below the Q Value field. this is the important setting
Subscription Expiry (s):	60
Failed Subscription Retry Time (s):	120
Identity can receive calls	ON

>>>> To Set SNOM for Paging via MULTICAST with Auto Answer.

SETUP > ADVANCED TAB > SIP RTP

To Turn ON Multicast Support so you can page using Multicast

Set Multicast Support to ON (default is Off)

Set IP Address1 & Port to Listen (default is blank)

NOTE: Yealink template sets 224.0.0.1:10000, so that is setting we use, but what is most important, is that this setting is same on the phones so they are all on the same multicast address & port.

SIP/RTP

SIP:

Network identity (port):

SIP T1 (ms):

Timer Support (RFC4028):

on off

SIP Session Timer (s):

SIP Dirty Host TTL (s):

SIP Max Forwards:

ENUM Suffix:

Retry interval after failed registration (s):

Use user:phone:

on off

Refer-To Brackets:

on off

Require PRACK:

on off

Send PRACK:

on off

Offer GRUU:

on off

Offer MPO:

on off

Use Outbound:

on off

Use SIP Compact Headers:

on off

Listen on SIP TCP port:

on off

Disable blind transfer (REFER):

on off

Disable deflection (code 302):

on off

Show History-Info:

on off

Show Diversion:

on off

Use NAPTR on SIP URIs:

on off

Encode display name:

on off

Voice Quality Report Collector:

RTCP-XR Report Format:

Check SDP Version:

on off

Release Transferred Party On:

Retrieve Transferred Party On:

Allow SIP Settings:

on off

Minibrowser:

XML NOTIFY Support:

on off

RTP/RTCP:

Dynamic RTP port start:

Dynamic RTP port stop:

RTCP Support:

on off

RTP Keepalive:

on off

Enhanced JB:

on off

JB_Min:

JB_Max:

JB_Shrink:

Multicast:

Multicast Support:

on off

(1) IP Address:

(2) IP Address:

(3) IP Address:

(4) IP Address:

(5) IP Address:

(6) IP Address:

(7) IP Address:

(8) IP Address:

(9) IP Address:

(10) IP Address:

Identity 1 > RTP Tab

Set Multicast relay address to 224.0.0.1:10000

RTP Identity Settings:
	Codec:
	Packet Size:	10 ms 20 ms 30 ms 40 ms 60 ms

	Filtered codec list:	g722, pcmu, pcma, gsm, g726-32, aal2-g726-32, ~~g723~~, g729, telephone-event

	Full SDP Answer:	on off
	Symmetrical RTP:	on off
	RTP Encryption:	on off
	G.726 Byte Order:	RFC3551 AAL2
	SRTP Auth-tag:	AES-32 AES-80
	RTP/SAVP:	off optional mandatory
	Media Transport Offer:	UDP TCP
	Media Transport Offer Setup:	active passive any
	Multicast relay address:

TO SET ADMIN Password

SETUP > ADVANCED TAB > QoS SECURITY (you need to enter these 4 fields)

1. Administrator Password: (set to l....8#.) (was formerly l....8)

2. Administrator Password (Confirmation): (set to l....8#.)

HTTP Server Tab:

3. User: set to (admin)

4. Password: set to (l8)

Apply

QoS/Security

Quality of Service:

RTP Type of Service (TOS/Diffserv):

SIP Type of Service (TOS/Diffserv):

VLAN

VLAN Id (0..4095):

VLAN Priority (0..7):

Un-/Tag VLAN traffic to/from specific switch ports:

on off

PC Port:

VLAN Id (0..4095):

VLAN Priority (0..7):

IEEE 8021x Authentication

User:

Password:

Security:

Ignore security advices:

on off

Use hidden tags:

on off

Restrict URI queries:

on off

Allow CSTA control:

on off

Empty client cert:

on off

Filter Packets from Registrar:

on off

Authentication for SIP Reboot:

on off

Authentication for SIP Check-Sync:

on off

Administrator Mode:

on off

Administrator Password:

ENTER NEW Password (l8#)

Administrator Password (Confirmation):

ENTER NEW Password (l8#)

Mininum PIN length:

Maximum PIN retries:

HTTP Server:

User:

ENTER NEW (admin)

Password:

ENTER NEW Password (l8#)

Authentication Scheme:

Digest Basic

HTTP Client:

User:

Password:

HTTP Proxy:

User:

Password:

With DHCP
The snom PA1 has a built-in DHCP client. When DHCP is available in the network, the PA1 will initialize automatically.
1. The red LED begins to blink. The PA1 is sending the DHCP request.
2. After the PA1 has received an IP address and other network-related settings (netmask, IP gateway, DNS server, etc.) from the DHCP server, the red LED stops blinking and glows red steadily.
3. When the PA1 boot up process is finished and the web interface is available, the green LED lights up.
4. Press the "IP/Reset" button for the oral announcement of the IP address (in English) over the loudspeaker or headset.
5. Open a web browser on a PC connected to the same network as the PA1.
6. Type the IP address into the address bar after http:// and press "Enter" to open the PA1's web interface.
7. Continue with "Logging on an account".

Without DHCP
If your network does not support DHCP, the snom PA1 will boot with the default IP address. Please obtain the network IP address and netmask and, if applicable, other network settings from your network administrator.
1. The red LED begins to blink. The PA1 is sending the DHCP request.
2. If you want to skip the DHCP client setup (it may take several minutes before it is aborted by the PA1), press the "IP/Reset" button while the snom PA1 red power LED is blinking.
3. After the reset (or the aborted DHCP client setup) the PA1 will use the default network settings: IP address: 192.168.0.2 Netmask: 255.255.0.0 The red LED stops blinking and glows red steadily.
4. When the PA1 boot up process is finished and the web interface is available, the green LED lights up.
5. Connect your computer to the same network as the PA1, open a browser and type the default IP address in the address bar: http://192.168.0.2. The PA1 web interface will be loaded into the browser.
6. Click on "Advanced" in the menu on the left side of the window page.
7. At Network > DHCP click on "Off".
8. Obtain the network IP address, netmask, and any other network settings that may be necessary from your network administrator.
a. Text field of Network > IP address: Replace default value by network IP address.
b. Text field of Network > Netmask: Replace default value by network netmask.
c. Change other network settings, if necessary.
9. Click on "Save" at the bottom of the page.
10. The question "Apply setting changes?" appears at the top of the page.
Click on "Reboot".
11. You will be asked again whether you wish to reboot. Click on "Yes".
12. Device will save new settings and restart. When the start-up with the network settings is complete, the red and the green LED will both be glowing steadily.
13. Continue with "Logging on an account".
NOTE: Press the "IP/Reset" button briefly to hear the current IP Address of the snom PA1 (in English) over the connected loudspeaker or in the headset.

============================================================================================================================================

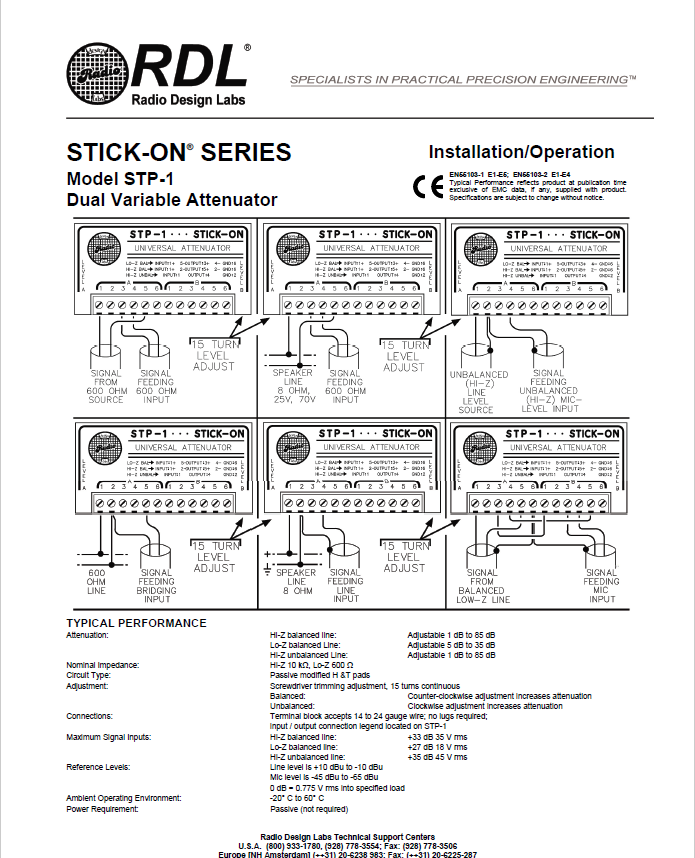

STP-1 ATTENUATOR MANUAL

Posted 13 June 2015 - 01:14 PM

The reason this does not work well is that the PA1 is not designed to be hooked up to an external amplifier.

Speaker Output is 8 Ohms

Line Level such as Panasonic is 600 Ohms

So you typically need a converter to convert the speaker level 8 Ohm to Line Level 600 Ohms

You can use this attenuator for with Bogen or the Valcom V-1095 for Valcom Applications.

The PA1 speaker outputs are driven by a 4 amp class D power amplifier, the output is 8 ohms. The speaker outputs should only be hooked up to a small 8 ohm loud speaker. Additionally, you can't hook up too many speakers or have very long wire runs because the amp is only 4 watts.

The line-out on the PA1 will not work for similar reasons. The line-out is misleading because it is not really a line level output like the type you would hook up to the line-in of an amplifier. The Snom documentation clearly states the line-out and line-in on the PA1 are only to be used for configuration and setup.

The Bogen amplifier is a telephone paging amplifier. It has a TEL/BAL input labeled Tip/Ring. This is a 600 ohm input designed to be hooked up to the paging output of a telephone system. The Bogen also has a Music input which is a line level input designed to be hooked up to the line-out of an audio source.

The outputs on the PA1 are not compatible with the inputs of the Bogen. You can hook up the speaker outputs of the PA1 to the TEL/BAL input of the Bogen. I have seen it work, but the fact is it is not intended to be hooked up this way and can cause problems.

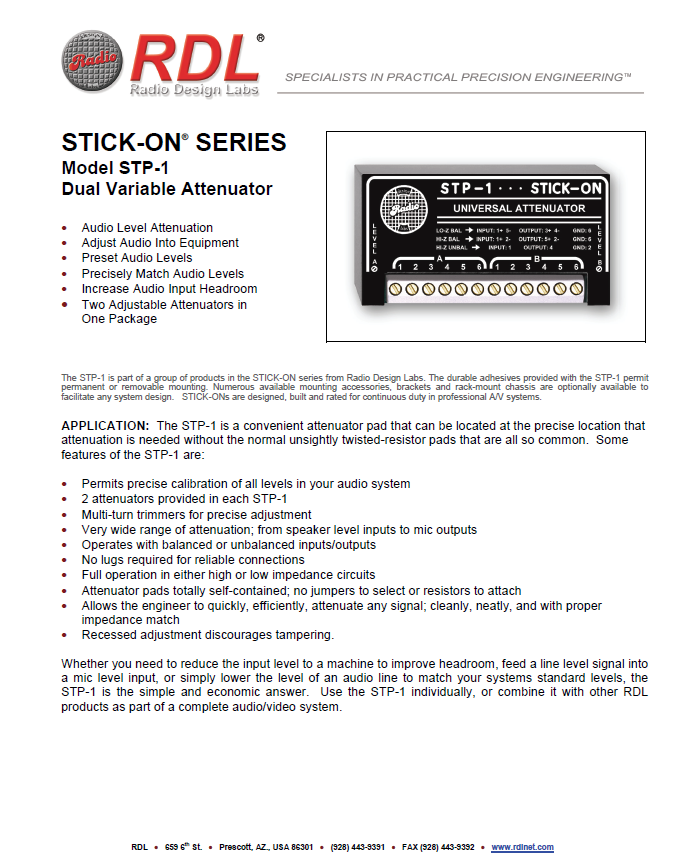

The solution is to use a device that will convert the 8 ohm speaker output of the PA1 to Line Level 600 ohm TEL/BAL input of the Bogen. The Radio Design Labs RDL - STP-1 Universal Audio Attenuator is designed exactly for this purpose. Here is a link to the product page and datasheet.

http://www.rdlnet.co...uct.php?page=26

http://www.rdlnet.co...heets/stp-1.pdf

This is the device that will allow you to correctly hook up the Snom PA1 to almost any paging system or paging amplifier. The datasheet has hookup diagrams for connecting different inputs to different outputs. You can convert the 8 ohn speaker output of the PA1 to a 600 ohm input for use with most telephone paging amplifers. You can convert the 8 ohm speaker output to a line level and hook it up to any amplifer with line level inputs. It is quite a versital little device for the $50.00 or $60.00 USD price tag.

I must say that I really wish Snom provided better documentation on the PA1. The manual should clearly state that the PA1 is not designed to be hooked up to an external amplifer.
