This will cover IPsec to Cisco and similar router/firewalls:
This guide covers configuration of IPsec between Peplink and Cisco IOS devices using pre-shared key authentication. The example configuration assumes the following settings:
| IPsec VPN Settings | |
|---|---|
| Peplink WAN1 IP Address | 210.211.10.5 |
| Peplink WAN2 IP Address | 88.20.8.20 |
| Peplink LAN Network | 192.168.2.0/24 |
| Cisco WAN IP Address | 66.80.3.1 |
| Cisco LAN Network | 192.168.1.0/24 |
| Pre Shared Key | abc8009008 |
| IPsec Phase 1 Authentication | SHA-1 |
| ISPEC Phase 1 Encryption | AES-128 |
| ISPEC Phase 1 DH Group | 2 |
| IPsec Phase 2 Authentication | SHA-1 |
| ISPEC Phase 2 Encryption | AES-128 |
| ISPEC Phase 2 PFS Group | 2 |

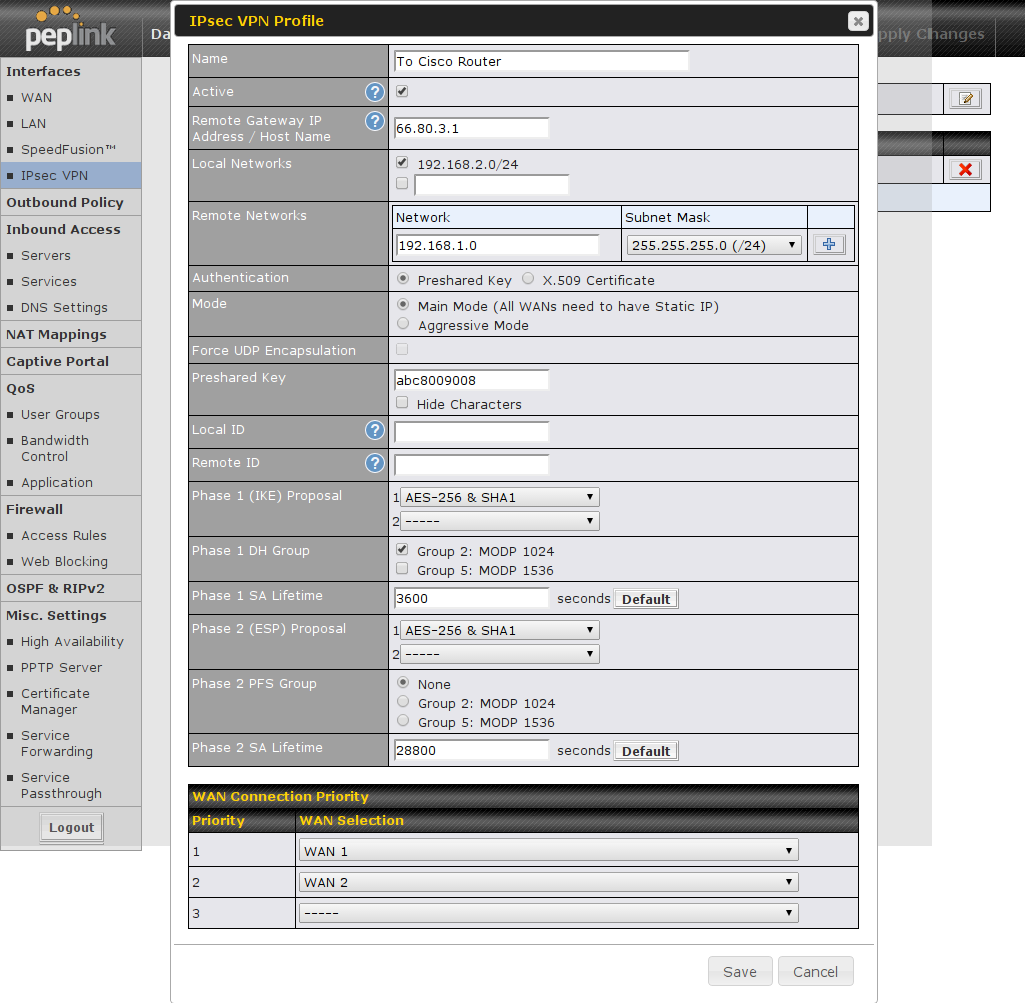

Using the above example settings from the Cisco, Sonicwall, Etc. Router, we program the Peplink as follows:
