Grandstream GXP1625, GXP1620, GXP1628 Sonictel KEYPBX Overrides 8/2/2020, SR

These are the suggested OVERRIDES, as most are already in the NDP as of 8/9/2020 SR which is to upgrade firmware to 1.0.4.152 (optional if needed)

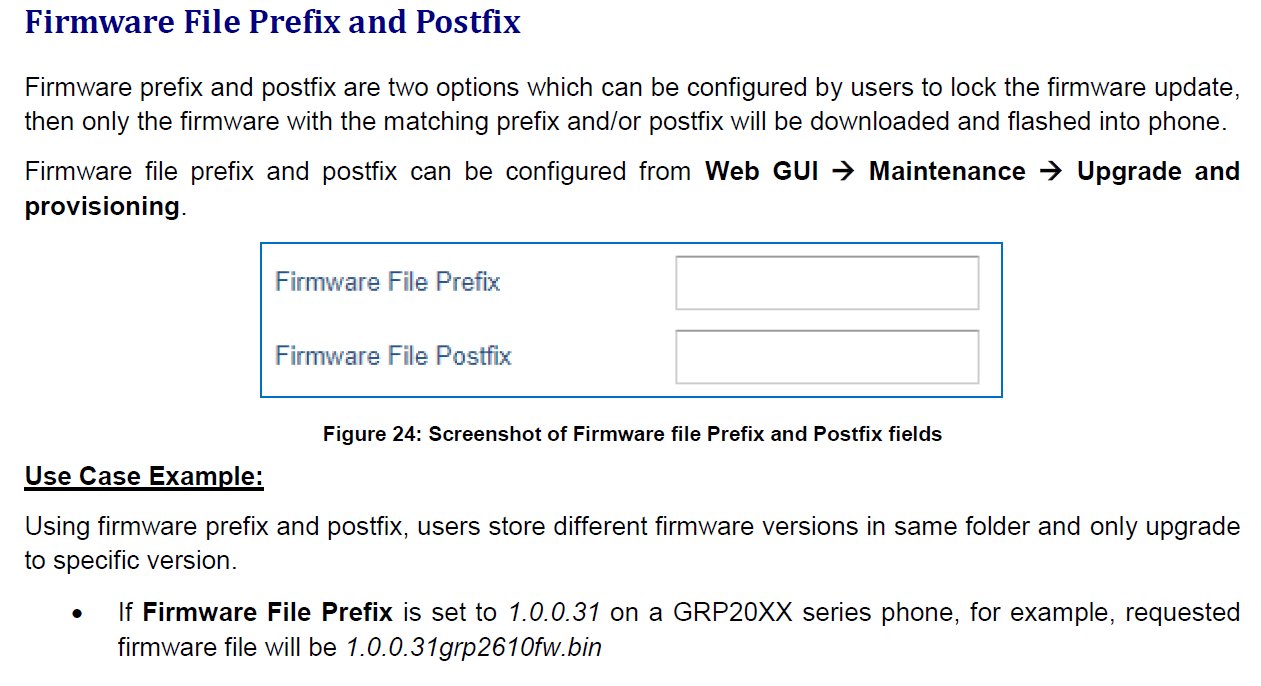

Firmware files must always stop at the folder level and not reference the final xxx.bin file

Firmware 1.0.4.152 Test OK

Firmware 1.0.5.3 NO GOOD

P238="1"

P6767="2"

P232="1.0.4.152"

P192="sonictel-prov-files.s3.us-east-2.amazonaws.com/Grandstream-GXP16XX-104152"

P8375="0"

##########################################################################

When needing to use TLS because of SIP ALG issues

# SIP Transport. 0 - UDP, 1 - TCP, 2 - TLS/TCP. Default is 0

# Number: 0, 1, 2

# Mandatory

P130="2"

############################################################################

PHONEBOOK (see phonebook template RULES in this document)

P330="3"

P331="sonictel-prov-files.s3.us-east-2.amazonaws.com/kawasaki-phonebook"

P332="720"

P333="0"

P1526="2"

################################################################################################

## Configuration Template For GXP1610/1620/1625/1628/1630 Firmware Version 1.0.5.3            ##

################################################################################################

####################################################################

# Account Settings                                                ##

####################################################################

####################################################################

# Account 1                                                       ##

####################################################################

##########################################

# Account 1/General Settings

##########################################

# Account Active. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P271 = 1

# Account Name

# String

P270 =

# SIP Server

# String

P47 =

# Secondary SIP Server

# String

P2312 =

# Outbound Proxy

# String

P48 =

# Backup Outbound Proxy

# String

P2333 =

# BLF Server

# String

P2375 =

# SIP User ID

# String

P35 =

# Authenticate ID

# String

P36 =

# Authenticate Password

# String

P34 =

# Name

# String

P3 =

# Voice Mail Access Number

# String

P33 =

# Account Display

# Number: 0 - User Name, 1 - User ID. Default is 0.

# Mandatory

P2380 = 0

##########################################

# Account 1/Network Settings

##########################################

# DNS Mode. 0 - A Record, 1 - SRV, 2 - NAPTR/SRV, 3 - Use Configured IP. Default is 0

# Number: 0, 1, 2, 3

# Mandatory

P103 = 0

# Primary IP. Maximum 15 characters

# String

P2308 =

# Backup IP 1

# String

P2309 =

# Backup IP 2

# String

P2310 =

# NAT Traversal. 0 - No, 1 - STUN, 2 - keep alive, 3 - UPnP, 4 - Auto, 5 - VPN. Default is 0.

# Number: 0, 1, 2, 3, 4, 5

# Mandatory

P52 = 0

# Proxy-Require (A SIP extension to enable firewall penetration). Max length is 64 characters

# String

P197 =

# Use SBC. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P26090 = 0

##########################################

# Account 1/SIP Settings/Basic Settings

##########################################

# TEL URI. 0 - Disabled, 1 - User=Phone, 2 - Enabled. Default is 0

# Number: 0, 1, 2

# Mandatory

P63 = 0

# SIP Registration. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P31 = 1

# Unregister On Reboot. 0 - No, 1 - All, 2-Instance. Default is 0

# Number: 0, 1

# Mandatory

P81 = 0

# Register Expiration (in minutes). Default is 60. Max about 45 days

# Number: 1 - 64800

# Mandatory

P32 = 60

# Subscribe Expiration (in minutes). Default is 60. Max about 45 days

# Number: 1 - 64800

# Mandatory

P26051 = 60

# Reregister Before Expiration (in seconds). Default is 0 second

# Number: 0 - 64800

# Mandatory

P2330 = 0

# Enable OPTIONS Keep Alive

# Number: 0, 1

# Mandatory

P2397 = 0

# OPTIONS Keep Alive Interval (in seconds). Default is 30 seconds

# Number

# Mandatory

P2398 = 30

# OPTIONS Keep Alive Max Lost (number of max lost packets). Default is 3

# Number

# Mandatory

P2399 = 3

# Local SIP Port. Default is 5060

# Number

# Mandatory

P40 = 5060

# SIP Registration Failure Retry Wait Time (in seconds). Default is 20

# Number: 1 - 3600

# Mandatory

P138 = 20

# SIP T1 Timeout. RFC 3261 T1 value (RTT estimate)

# 50 - 0.5 sec, 100 - 1 sec, 200 - 2 sec. Default is 50

# Number: 50, 100, 200

# Mandatory

P209 = 50

# SIP T2 Timeout. RFC 3261 T2 value. The maximum retransmit interval for non-INVITE requests and INVITE responses

# 200 - 2 sec, 400 - 4 sec, 800 - 8 sec. Default is 400

# Number: 200, 400, 800

# Mandatory

P250 = 400

# Switch Backup Proxy on No Response. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P26092 = 0

# SIP Transport. 0 - UDP, 1 - TCP, 2 - TLS/TCP. Default is 0

# Number: 0, 1, 2

# Mandatory

P130 = 0

# SIP URI Scheme when using TLS. 0 - sip, 1 - sips. Default is 1

# Number: 0, 1

# Mandatory

P2329 = 1

# Use Actual Ephemeral Port in Contact with TCP/TLS. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2331 = 0

# Outbound Proxy Mode. 0 - in route, 1 - not in route, 2 - always send to. Default is 0

# Number: 0, 1, 2

# Mandatory

P2305 = 0

# Support SIP Instance ID. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P288 = 1

# SUBSCRIBE for MWI. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P99 = 0

# SUBSCRIBE for Registration. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2319 = 0

# Enable 100rel. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P272 = 0

# Callee ID Display. 0 - Auto, 1 - Disabled, 2 - To Header. Default is 0

# Number: 0, 1, 2

# Mandatory

P26025 = 0

# Caller ID Display. 0 - Auto, 1 - Disabled, 2 - From Header. Default is 0

# Number: 0, 1, 2

# Mandatory

P2324 = 0

# Ignore Alert-Info header

# 0 - No, 1 - Yes. Default is 0

# Number 0,1

# Mandatory

P26018 = 0

# Add Auth Header On Initial REGISTER

# 0 - No, 1 - Yes. Default is 0

# Number 0,1

# Mandatory

P2359 = 0

###########################################

# Account 1/SIP Settings/Custom SIP Headers

###########################################

# Use Privacy Header

# 0 - Default, 1 - No, 2 - Yes. Default is 0

# Number: 0, 1, 2

# Mandatory

P2338 = 0

# Use P-Preferred-Identity Header

# 0 - Default, 1 - No, 2 - Yes. Default is 0

# Number: 0, 1, 2

# Mandatory

P2339 = 0

# Use X-Grandstream-PBX Header

# 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P26054 = 1

# Use P-Access-Network-Info Header

# 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P26058 = 1

# Use P-Emergency-Info Header

# 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P26059 = 1

# Use MAC Header

# 0 - No, 1 - Yes except REGISTER, 2 - Yes to all SIP. Default is 0

# Number: 0, 1, 2

# Mandatory

P26061 = 0

##########################################

# Account 1/SIP Settings/Advanced Features

##########################################

# Line-seize Timeout (in seconds). Default is 15

# Number: 15-60

# Mandatory

P2313 = 15

# Eventlist BLF URI. For GXP1630/1628 only

# String

P134 =

# Auto Provision Eventlist BLFs. For GXP1630/1628 only. 0 - disabled, 1 - enabled.

# Number: 0, 1

# Default is 0

# Mandatory

P2389 = 0

# Conference URI

# String

P2318 =

# Music On Hold URI

# String

P2350 =

# Force BLF Call-pickup by prefix. For GXP1630/1628 only. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P6752 = 0

# BLF Call-pickup Prefix. For GXP1630/1628 only.

# String. Defaule is "**"

P1347 = **

# Call Pickup Barge-In Code. For GXP1630/1628 only.

# String

P26046 =

# PUBLISH for Presence. 0 - No, 1 - Yes. For GXP1630/1628 only.

# Number: 0, 1

# Default is 0

# Mandatory

P188 = 0

# Enable User Presence Subscription

# Number: 0 - No, 1 - Yes. Default is 0.

# Mandatory

P2353 = 0

# Hide Login Soft Key On Auto User Presence Subscription

# Number: 0 - No, 1 - Yes. Default is 1.

# Mandatory

P2354 = 1

# Auto User Presence ID

# String

P2351 =

# Auto User Presence Password

# String

P2352 =

# Special Feature. 100 - Standard, 101 - Nortel MCS, 102- Broadsoft, 108 - CBCOM,

# 109 - RNK, 110 - Sylantro, 117 - Huawei IMS, 119 - Phonepower

# Default is 100

# Number: 100, 101, 102, 108, 109, 110, 117, 119

# Mandatory

P198 = 100

# Broadsoft Call Center. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2341 = 0

# Hoteling Event. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2342 = 0

# Call Center Status. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2343 = 0

# Feature Key Synchronization. 0 - Disabled, 1 - Enabled. Default is 0

# Number: 0, 1

# Mandatory

P2325 = 0

# Broadsoft Call Park

# Number 0 - Disabled, 1 - Enabled. Default is 0

# Mandatory

P2388 = 0

##########################################

# Account 1/SIP Settings/Session Timer

##########################################

# Enable Session Timer. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P2395 = 1

# Session Expiration (in seconds). Default is 180

# Number: 90 - 64800

# Mandatory

P260 = 180

# Minimum SE (in seconds). Default is 90. This value must be lower than or equal to P260

# Number: 90 - 64800

# Mandatory

P261 = 90

# Caller Request Timer (Request for timer when calling). 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P262 = 0

# Callee Request Timer (Request for timer when called. i.e. if remote party supports timer but did not request for one)

# 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P263 = 0

# Force Timer (Still use timer when remote party does not support timer). 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P264 = 0

# UAC Specify Refresher. 0 - omit, 1 - UAC, 2 - UAS. Default is 0

# Number: 0, 1, 2

# Mandatory

P266 = 0

# UAS Specify Refresher. 1 - UAC, 2 - UAS. Default is 1

# Number: 1, 2

# Mandatory

P267 = 1

# Force INVITE (Always refresh with INVITE instead of UPDATE even when remote party supports UPDATE).

# 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P265 = 0

###########################################

# Account 1/SIP Settings/Security Settings

###########################################

# Check Domain Certificates. When set to Yes/Enabled, domain certificate will be checked as defined in RFC5922

# 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2311 = 0

# Validate Certification Chain. 0 - No, 1 - Yes. Default is 0

# NUmber: 0, 1

# Mandatory

P2367 = 0

# Validate Incoming Messages. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2306 = 0

# Check SIP User ID for incoming INVITE. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P258 = 0

# Accept Incoming SIP from Proxy Only. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2347 = 0

# Authenticate Incoming INVITE. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2346 = 0

##########################################

# Account 1/Audio Settings

##########################################

# Send DTMF: In-audio. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2301 = 0

# Send DTMF: Via RTP (RFC2833). 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P2302 = 1

# Send DTMF: Via SIP INFO. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2303 = 0

# DTMF Payload Type. Default is 101

# Number: 96 - 127

# Mandatory

P79 = 101

# Preferred Vocoder

# 0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 - PCMA, 9 - G.722, 18 - G.729A/B, 98 - iLBC

# choice 1. Default is 0

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P57 = 0

# choice 2. Default is 8

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P58 = 8

# choice 3. Default is 18

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P59 = 18

# choice 4. Default is 9

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P60 = 9

# choice 5. Default is 2

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P61 = 2

# choice 6. Default is 2

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P62 = 2

# choice 7. Default is 2

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P46 = 2

# Use First Matching Vocoder in 200OK SDP. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2348 = 0

# Codec Negotiation Priority. 0 - Caller, 1 - Callee. Default is 1

# Number: 0, 1

# Mandatory

P29061 = 1

# Disable Multiple m line in SDP. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P137 = 0

# SRTP Mode. 0 - Disabled, 1 - Enabled but not forced, 2 - Enabled and forced, 3 - Optional. Default is 0

# Number: 0, 1, 2, 3

# Mandatory

P183 = 0

# Symmetric RTP. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P291 = 0

# Silence Suppression. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P50 = 0

# Voice Frames per TX (up to 10/20/32/64 frames for G711/G726/G723/other codecs respectively). Default is 2

# Number: 1 - 64

# Mandatory

P37 = 2

# G723 Rate. 0 - 6.3kbps, 1 - 5.3 kbps. Default is 0

# Number: 0, 1

# Mandatory

P49 = 0

# G.726-32 Packing Mode. 0 - ITU, 1 - IETF. Default is 0

# Number: 0, 1

# Mandatory

P2323 = 0

# iLBC Frame Size, 0 - 20ms, 1 - 30ms. Default is 1.

# Number: 0, 1

# Mandatory

P97 = 1

# iLBC Payload Type, Default is 97

# Number: 96 - 127

# Mandatory

P96 = 97

# Jitter Buffer Type. 0 - Fixed, 1 - Adaptive. Default is 1

# Number: 0, 1

# Mandatory

P133 = 1

# Jitter Buffer Length. 0 - 100ms, 1 - 200ms, 2 - 300ms, 3 - 400ms, 4 - 500ms, 5 - 600ms, 6 - 700ms, 7 - 800ms

# Default is 2

# Number: 0, 1, 2, 3, 4, 5, 6, 7

# Mandatory

P132 = 2

# Hide Vocodec. 0 - No, 1 - Yes. Default is 0.

# Number: 0, 1

# Mandatory

P26047 = 0

##########################################

# Account 1/Call Settings

##########################################

# Early Dial (use "Yes" only if proxy supports 484 response). 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P29 = 0

# Dial Plan Prefix

# String

P66 =

# Dial Plan. Default is { x+ | *x+ | *xx*x+ }

# String

# Mandatory

P290 = { x+ | *x+ | *xx*x+ }

# Bypass Dial Plan. Default is Mpk

# String: Contact, Call History Incoming Call, Call History Outgoing Call, Dialing Page, Mpk, Api

# P2382 = Mpk

# Call Log. 0 - Log All, 1 - Log Incoming/Outgoing only (Missed calls NOT recorded), 2 - Disable Call Log. Default is 0

# Number: 0, 1, 2

# Mandatory

P182 = 0

# Send Anonymous (caller ID will be blocked if set to Yes). 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P65 = 0

# Anonymous Call Rejection. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P129 = 0

# Auto Answer. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P90 = 0

# Refer-To Use Target Contact. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P135 = 0

# Transfer on conference Hang-Up. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2304 = 0

# Disable Recovery on Blind Transfer, 0 - No, 1- Yes. Default is 0

# Number: 0, 1

# Mandatory

P2384 = 0

# Blind Transfer Wait Timeout, in seconds. Default is 30

# Number: 30 - 300

P26070 = 30

# No Key Entry Timeout (in seconds). Default is 4

# Number: 1 - 15

# Mandatory

P85 = 4

# Key as Send. 0 - Disable, 1 - Pound (#). Default is 1

# Number: 0, 1

# Mandatory

P72 = 1

# On Hold Reminder Tone.  0 - Disabled, 1 - Enabled. Default is 0

# Number: 0, 1

# Mandatory

P26006 = 0

# Call Recording ON

# String

P26028 =

# Call Recording OFF

# String

P26029 =

# Hide Dialing Password - Prefix for Dialing Password

# String

P26049 =

# Hide Dialing Password - Password Length. Default is 0.

# Number: 1 - 32

P26050 = 0

# Remote Info Display

# 0 - Name and Number, 1 - Number, 2 - Name. Default is 0

# Number: 0, 1, 2

P26076 = 0

# Hide Remote User ID - Call Type. 0 - None of Call, 1 - Incoming Calls, 2 - Outgoing Calls, 3 - Both Directions. Default is 0

# Number: 0 - 3

P26043 = 0

# Hide Remote User ID - Length

# Number: 0 ... N

P26044 = 0

# Account Ring Tone. 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 5

# Number: 0 - 12

# Mandatory

P104 = 5

# Matching Incoming Caller ID. Matching Rule 1

# String

P1488 =

# Matching Rule 1 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P1489 = 0

# Matching Incoming Caller ID. Matching Rule 2

# String

P1490 =

# Matching Rule 2 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P1491 = 0

# Matching Incoming Caller ID. Matching Rule 3

# String

P1492 =

# Matching Rule 3 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P1493 = 0

# Matching Incoming Caller ID. Matching Rule 4

# String

P6716 =

# Matching Rule 4 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P6717 = 0

# Matching Incoming Caller ID. Matching Rule 5

# String

P6718 =

# Matching Rule 5 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P6719 = 0

# Matching Incoming Caller ID. Matching Rule 6

# String

P6720 =

# Matching Rule 6 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P6721 = 0

# Matching Incoming Caller ID. Matching Rule 7

# String

P26064 =

# Matching Rule 7 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P26065 = 0

# Matching Incoming Caller ID. Matching Rule 8

# String

P26066 =

# Matching Rule 8 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P26067 = 0

# Matching Incoming Caller ID. Matching Rule 9

# String

P26068 =

# Matching Rule 9 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P26069 = 0

# Matching Incoming Caller ID. Matching Rule 10

# String

P26096 =

# Matching Rule 10 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P26097 = 0

# Ring Timeout (in seconds). Default is 60

# Number: 30 - 3600

# Mandatory

P1328 = 60

#####################################################

# Account 1/Intercom Settings

#####################################################

# Allow Auto Answer by Call-Info/Alert-Info. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P298 = 0

# Mute on answer Intercom call. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P26071 = 0

# Play warning tone for Auto Answer Intercom. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P26072 = 0

# Custom Call-Info for Auto Answer

# String

P2356 =

#####################################################

# Account 1/Feature Codes

#####################################################

# Enable Local Call Features.  0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P191 = 1

# DND Call Feature ON

# String

P2344 =

# DND Call Feature OFF

# String

P2345 =

# Call Forward Unconditionally (All) ON

# String

P26013 =

# Call Forward Unconditionally (All) - OFF

# String

P26014 =

# Call Forward Busy - ON

# String

P26009 =

# Call Forward Busy - OFF

# String

P26010 =

# Call Forward Delayed (No Answer) - ON

# String

P26011 =

# Call Forward Delayed (No Answer) - OFF

# String

P26012 =

# Delayed Call Forward Wait Time

# Number: 1 - 120. Default is 20.

# Mandatory

P139 = 20

####################################################################

# Account 2  - GXP1620/1625/1628/1630 only

####################################################################

##########################################

# Account 2/General Settings

##########################################

# Account Active. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P401 = 1

# Account Name

# String

P417 =

# SIP Server

# String

P402 =

# Secondary SIP Server

# String

P2412 =

# Outbound Proxy

# String

P403 =

# Backup Outbound Proxy

# String

P2433 =

# BLF Server

# String

P2475 =

# SIP User ID

# String

P404 =

# Authenticate ID

# String

P405 =

# Authenticate Password

# String

P406 =

# Name

# String

P407 =

# Voice Mail Access Number

# String

P426 =

# Account Display

# Number: 0 - User Name, 1 - User ID. Default is 0.

# Mandatory

P2480 = 0

##########################################

# Account 2/Network Settings

##########################################

# DNS Mode. 0 - A Record, 1 - SRV, 2 - NAPTR/SRV, 3 - Use Configured IP. Default is 0

# Number: 0, 1, 2, 3

# Mandatory

P408 = 0

# Primary IP. Maximum 15 characters

# String

P2408 =

# Backup IP 1

# String

P2409 =

# Backup IP 2

# String

P2410 =

# NAT Traversal. 0 - No, 1 - STUN, 2 - keep alive, 3 - UPnP, 4 - Auto, 5 - VPN. Default is 0.

# Number: 0, 1, 2, 3, 4, 5

# Mandatory

P414 = 0

# Proxy-Require (A SIP extension to enable firewall penetration). Max length is 64 characters

# String

P418 =

# Use SBC. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P26190 = 0

##########################################

# Account 2/SIP Settings/Basic Settings

##########################################

# TEL URI. 0 - Disabled, 1 - User=Phone, 2 - Enabled. Default is 0

# Number: 0, 1, 2

# Mandatory

P409 = 0

# SIP Registration. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P410 = 1

# Unregister On Reboot. 0 - No, 1 - All, 2 - Instace. Default is 0

# Number: 0, 1

# Mandatory

P411 = 0

# Register Expiration (in minutes). Default is 60. Max about 45 days

# Number: 1 - 64800

# Mandatory

P412 = 60

# Subscribe Expiration (in minutes). Default is 60. Max about 45 days

# Number: 1 - 64800

# Mandatory

P26151 = 60

# Reregister Before Expiration (in seconds). Default is 0 second

# Number: 0 - 64800

# Mandatory

P2430 = 0

# Enable OPTIONS Keep Alive

# Number: 0, 1

# Mandatory

P2497 = 0

# OPTIONS Keep Alive Interval (in seconds). Default is 30 seconds

# Number

# Mandatory

P2498 = 30

# OPTIONS Keep Alive Max Lost (number of max lost packets). Default is 3

# Number

# Mandatory

P2499 = 3

# Local SIP Port. Default is 5062

# Number

# Mandatory

P413 = 5062

# SIP Registration Failure Retry Wait Time (in seconds). Default is 20

# Number: 1 - 3600

# Mandatory

P471 = 20

# SIP T1 Timeout. RFC 3261 T1 value (RTT estimate)

# 50 - 0.5 sec, 100 - 1 sec, 200 - 2 sec. Default is 50

# Number: 50, 100, 200

# Mandatory

P440 = 50

# SIP T2 Timeout. RFC 3261 T2 value. The maximum retransmit interval for non-INVITE requests and INVITE responses

# 200 - 2 sec, 400 - 4 sec, 800 - 8 sec. Default is 400

# Number: 200, 400, 800

# Mandatory

P441 = 400

# Switch Backup Proxy on No Response. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P26192 = 0

# SIP Transport. 0 - UDP, 1 - TCP, 2 - TLS/TCP. Default is 0

# Number: 0, 1, 2

# Mandatory

P448 = 0

# SIP URI Scheme when using TLS. 0 - sip, 1 - sips. Default is 1

# Number: 0, 1

# Mandatory

P2429 = 1

# Use Actual Ephemeral Port in Contact with TCP/TLS. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2431 = 0

# Outbound Proxy Mode. 0 - in route, 1 - not in route, 2 - always send to. Default is 0

# Number: 0, 1, 2

# Mandatory

P2405 = 0

# Support SIP Instance ID. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P489 = 1

# SUBSCRIBE for MWI. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P415 = 0

# SUBSCRIBE for Registration. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2419 = 0

# Enable 100rel. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P435 = 0

# Callee ID Display. 0 - Auto, 1 - Disabled, 2 - To Header. Default is 0

# Number: 0, 1, 2

# Mandatory

P26125 = 0

# Caller ID Display. 0 - Auto, 1 - Disabled, 2 - From Header. Default is 0

# Number: 0, 1, 2

# Mandatory

P2424 = 0

# Ignore Alert-Info header

# 0 - No, 1 - Yes. Default is 0

# Number 0,1

# Mandatory

P26118 = 0

# Add Auth Header On Initial REGISTER

# 0 - No, 1 - Yes. Default is 0

# Number 0,1

# Mandatory

P2459 = 0

############################################

# Account 2/SIP Settings/Custom SIP Headers

############################################

# Use Privacy Header

# 0 - Default, 1 - No, 2 - Yes. Default is 0

# Number: 0, 1, 2

# Mandatory

P2438 = 0

# Use P-Preferred-Identity Header

# 0 - Default, 1 - No, 2 - Yes. Default is 0

# Number: 0, 1, 2

# Mandatory

P2439 = 0

# Use X-Grandstream-PBX Header

# 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P26154 = 1

# Use P-Access-Network-Info Header

# 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P26158 = 1

# Use P-Emergency-Info Header

# 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P26159 = 1

# Use MAC Header

# 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P26161 = 0

##########################################

# Account 2/SIP Settings/Advanced Features

##########################################

# Line-seize Timeout (in seconds). Default is 15

# Number: 15-60

# Mandatory

P2413 = 15

# Eventlist BLF URI. For GXP1630/1628 only.

# String

P444 =

# Auto Provision Eventlist BLFs. For GXP1630/1628 only. 0 - disabled, 1 - enabled

# Number: 0, 1

# Default is 0

# Mandatory

P2489 = 0

# Conference URI

# String

P2418 =

# Music On Hold URI

# String

P2450 =

# Force BLF Call-pickup by prefix. For GXP1630/1628 only. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P6753 = 0

# BLF Call-pickup Prefix. For GXP1630/1628 only.

# String. Defaule is "**"

P481 = **

# Call Pickup Barge-In Code. For GXP1630/1628 only.

# String

P26146 =

# PUBLISH for Presence. For GXP1630/1628 only. 0 - No, 1 - Yes

# Number: 0, 1

# Default is 0

# Mandatory

P488 = 0

# Enable User Presence Subscription

# Number: 0 - No, 1 - Yes. Default is 0.

# Mandatory

P2453 = 0

# Hide Login Soft Key On Auto User Presence Subscription

# Number: 0 - No, 1 - Yes. Default is 1.

# Mandatory

P2454 = 1

# Auto User Presence ID

# String

P2451 =

# Auto User Presence Password

# String

P2452 =

# Special Feature. 100 - Standard, 101 - Nortel MCS, 102- Broadsoft, 108 - CBCOM,

# 109 - RNK, 110 - Sylantro, 117 - Huawei IMS, 119 - Phonepower

# Default is 100

# Number: 100, 101, 102, 108, 109, 110, 117, 119

# Mandatory

P424 = 100

# Broadsoft Call Center. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2441 = 0

# Hoteling Event. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2442 = 0

# Call Center Status. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2443 = 0

# Feature Key Synchronization. 0 - Disabled, 1 - Enabled. Default is 0

# Number: 0, 1

# Mandatory

P2425 = 0

# Broadsoft Call Park

# Number: 0,1 - Default is 0

# Mandatory

P2488 = 0

##########################################

# Account 2/SIP Settings/Session Timer

##########################################

# Enable Session Timer. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P2495 = 1

# Session Expiration (in seconds). Default is 180

# Number: 90 - 64800

# Mandatory

P434 = 180

# Minimum SE (in seconds). Default is 90. This value must be lower than or equal to P434

# Number: 90 - 64800

# Mandatory

P427 = 90

# Caller Request Timer (Request for timer when calling). 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P428 = 0

# Callee Request Timer (Request for timer when called. i.e. if remote party supports timer but did not request for one)

# 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P429 = 0

# Force Timer (Still use timer when remote party does not support timer). 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P430 = 0

# UAC Specify Refresher. 0 - omit, 1 - UAC, 2 - UAS. Default is 0

# Number: 0, 1, 2

# Mandatory

P432 = 0

# UAS Specify Refresher. 1 - UAC, 2 - UAS. Default is 1

# Number: 1, 2

# Mandatory

P433 = 1

# Force INVITE (Always refresh with INVITE instead of UPDATE even when remote party supports UPDATE).

# 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P431 = 0

############################################

# Account 2/SIP Settings/Security Settings

############################################

# Check Domain Certificates. When set to Yes/Enabled, domain certificate will be checked as defined in RFC5922

# 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2411 = 0

# Validate Certification Chain. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2467 = 0

# Validate Incoming Messages. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2406 = 0

# Check SIP User ID for incoming INVITE. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P449 = 0

# Accept Incoming SIP from Proxy Only. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2447 = 0

# Authenticate Incoming INVITE. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2446 = 0

##########################################

# Account 2/Audio Settings

##########################################

# Send DTMF: In-audio. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2401 = 0

# Send DTMF: Via RTP (RFC2833). 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P2402 = 1

# Send DTMF: Via SIP INFO. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2403 = 0

# DTMF Payload Type. Default is 101

# Number: 96 - 127

# Mandatory

P496 = 101

# Preferred Vocoder

# 0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 - PCMA, 9 - G.722, 18 - G.729A/B, 98 - iLBC

# choice 1. Default is 0

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P451 = 0

# choice 2. Default is 8

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P452 = 8

# choice 3. Default is 18

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P453 = 18

# choice 4. Default is 9

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P454 = 9

# choice 5. Default is 2

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P455 = 2

# choice 6. Default is 2

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P456 = 2

# choice 7. Default is 2

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P457 = 2

# Use First Matching Vocoder in 200OK SDP. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2448 = 0

# Codec Negotiation Priority. 0 - Caller, 1 - Callee. Default is 1

# Number: 0, 1

# Mandatory

P29161 = 1

# Disable Multiple m line in SDP. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P487 = 0

# SRTP Mode. 0 - Disabled, 1 - Enabled but not forced, 2 - Enabled and forced, 3 - Optional. Default is 0

# Number: 0, 1, 2, 3

# Mandatory

P443 = 0

# Symmetric RTP. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P460 = 0

# Silence Suppression. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P485 = 0

# Voice Frames per TX (up to 10/20/32/64 frames for G711/G726/G723/other codecs respectively). Default is 2

# Number: 1 - 64

# Mandatory

P486 = 2

# G723 Rate. 0 - 6.3kbps, 1 - 5.3kbps. Default is 0-23

# Number: 0, 1

# Mandatory

P493 = 0

# G.726-32 Packing Mode. 0 - ITU, 1 - IETF. Default is 0

# Number: 0, 1

# Mandatory

P2423 = 0

# iLBC Frame Size, Default is 1. 0 - 20ms, 1 - 30ms.

# Number: 0, 1

# Mandatory

P495 = 1

# iLBC Payload Type, Default is 97

# Number: 96 - 127

# Mandatory

P494 = 97

# Jitter Buffer Type. 0 - Fixed, 1 - Adaptive. Default is 1

# Number: 0, 1

# Mandatory

P498 = 1

# Jitter Buffer Length. 0 - 100ms, 1 - 200ms, 2 - 300ms, 3 - 400ms, 4 - 500ms, 5 - 600ms, 6 - 700ms, 7 - 800ms

# Default is 2

# Number: 0, 1, 2, 3, 4, 5, 6, 7

# Mandatory

P497 = 2

# Hide Vocoder. 0 - No, 1 - Yes. Default is 0.

# Number: 0, 1

# Mandatory

P26147 = 0

##########################################

# Account 2/Call Settings

##########################################

# Early Dial (use "Yes" only if proxy supports 484 response). 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P422 = 0

# Dial Plan Prefix

# String

P419 =

# Dial Plan. Default is { x+ | *x+ | *xx*x+ }

# String

# Mandatory

P459 = { x+ | *x+ | *xx*x+ }

# Bypass Dial Plan. Default is Mpk

# String: Contact, Call History Incoming Call, Call History Outgoing Call, Dialing Page, Mpk, Api

# P2482 = Mpk

# Call Log. 0 - Log All, 1 - Log Incoming/Outgoing only (Missed calls NOT recorded), 2 - Disable Call Log. Default is 0

# Number: 0, 1, 2

# Mandatory

P442 = 0

# Send Anonymous (caller ID will be blocked if set to Yes). 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P421 = 0

# Anonymous Call Rejection. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P446 = 0

# Auto Answer. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P425 = 0

# Refer-To Use Target Contact. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P469 = 0

# Transfer on conference Hang-Up. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2404 = 0

# Disable Recovery on Blind Transfer, 0 - No, 1- Yes. Default is 0

# Number: 0, 1

# Mandatory

P2484 = 0

# Blind Transfer Wait Timeout, in seconds. Default is 30

# Number: 30 to 300

P26170 = 30

# No Key Entry Timeout (in seconds). Default is 4

# Number: 1 - 15

# Mandatory

P491 = 4

# Key As Send. 0 - Disable, 1 - Pound (#). Default is 1

# Number: 0, 1

# Mandatory

P492 = 1

# On Hold Reminder Tone.  0 - Disabled, 1 - Enabled. Default is 0

# Number: 0, 1

# Mandatory

P26106 = 0

# Call Recording ON

# String

P26128 =

# Call Recording OFF

# String

P26129 =

# Hide Dialing Password - Prefix for Dialing Password

# String

P26149 =

# Hide Dialing Password - Password Length. Default is 0.

# Number: 0 - 32

P26150 = 0

# Remote Info Display

# 0 - Name and Number, 1 - Number, 2 - Name. Default is 0

# Number: 0, 1, 2

P26176 = 0

# Hide Remote User ID - Call Type. 0 - None of Call, 1 - Incoming Calls, 2 - Outgoing Calls, 3 - Both Directions. Default is 0.

# Number: 0 - 3

# Mandatory

P26143 = 0

# Hide Remote User ID - Length

# Number: 0 ... N

P26144 = 0

# Account Ring Tone. 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 5

# Number: 0 - 12

P423 = 5

# Matching Incoming Caller ID. Matching Rule 1

# String

P1494 =

# Matching Rule 1 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P1495 = 0

# Matching Incoming Caller ID. Matching Rule 2

# String

P1496 =

# Matching Rule 2 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P1497 = 0

# Matching Incoming Caller ID. Matching Rule 3

# String

P1498 =

# Matching Rule 3 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P1499 = 0

# Matching Incoming Caller ID. Matching Rule 4

# String

P6722 =

# Matching Rule 4 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P6723 = 0

# Matching Incoming Caller ID. Matching Rule 5

# String

P6724 =

# Matching Rule 5 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P6725 = 0

# Matching Incoming Caller ID. Matching Rule 6

# String

P6726 =

# Matching Rule 6 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P6727 = 0

# Matching Incoming Caller ID. Matching Rule 7

# String

P26164 =

# Matching Rule 7 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P26165 = 0

# Matching Incoming Caller ID. Matching Rule 8

# String

P26166 =

# Matching Rule 8 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P26167= 0

# Matching Incoming Caller ID. Matching Rule 9

# String

P26168 =

# Matching Rule 9 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P26169 = 0

# Matching Incoming Caller ID. Matching Rule 10

# String

P26196 =

# Matching Rule 10 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P26197 = 0

# Ring Timeout (in seconds). Default is 60

# Number: 30 - 3600

# Mandatory

P476 = 60

####################################################

# Account 2/Intercom Settings

####################################################

# Allow Auto Answer by Call-Info/Alert-Info. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P438 = 0

# Mute on answer Intercom call. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P26171 = 0

# Play warning tone for Auto Answer Intercom. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P26172 = 0

# Custom Call-Info for Auto Answer.

# String

P2456 =

#####################################################

# Account 2/Feature Codes

#####################################################

# Enable Local Call Features.  0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P420 = 1

# DND Call Feature ON

# String

P2444 =

# DND Call Feature OFF

# String

P2445 =

# Call Forward Unconditionally (All) ON

# String

P26113 =

# Call Forward Unconditionally (All) - OFF

# String

P26114 =

# Call Forward Busy - ON

# String

P26109 =

# Call Forward Busy - OFF

# String

P26110 =

# Call Forward Delayed (No Answer) - ON

# String

P26111 =

# Call Forward Delayed (No Answer) - OFF

# String

P26112 =

# Delayed Call Forward Wait Time

# Number: 1 - 120. Default is 20.

# Mandatory

P470 = 20

####################################################################

# Account 3  - GXP1630 only

####################################################################

##########################################

# Account 3/General Settings

##########################################

# Account Active. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P501 = 1

# Account Name

# String

P517 =

# SIP Server

# String

P502 =

# Secondary SIP Server

# String

P2512 =

# Outbound Proxy

# String

P503 =

# Backup Outbound Proxy

# String

P2533 =

# BLF Server

# String

P2575 =

# SIP User ID

# String

P504 =

# Authenticate ID

# String

P505 =

# Authenticate Password

# String

P506 =

# Name

# String

P507 =

# Voice Mail Access Number

# String

P526 =

# Account Display

# Number: 0 - User Name, 1 - User ID. Default is 0.

# Mandatory

P2580 = 0

##########################################

# Account 3/Network Settings

##########################################

# DNS Mode. 0 - A Record, 1 - SRV, 2 - NAPTR/SRV, 3 - Use Configured IP. Default is 0

# Number: 0, 1, 2, 3

# Mandatory

P508 = 0

# Primary IP. Maximum 15 characters

# String

P2508 =

# Backup IP 1

# String

P2509 =

# Backup IP 2

# String

P2510 =

# NAT Traversal. 0 - No, 1 - STUN, 2 - keep alive, 3 - UPnP, 4 - Auto, 5 - VPN. Default is 0.

# Number: 0, 1, 2, 3, 4, 5

# Mandatory

P514 = 0

# Proxy-Require (A SIP extension to enable firewall penetration). Max length is 64 characters

# String

P518 =

# Use SBC. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P26290 = 0

##########################################

# Account 3/SIP Settings/Basic Settings

##########################################

# TEL URI. 0 - Disabled, 1 - User=Phone, 2 - Enabled. Default is 0

# Number: 0, 1, 2

# Mandatory

P509 = 0

# SIP Registration. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P510 = 1

# Unregister On Reboot. 0 - No, 1 - All, 2 - Instace. Default is 0

# Number: 0, 1

# Mandatory

P511 = 0

# Register Expiration (in minutes). Default is 60. Max about 45 days

# Number: 1 - 64800

# Mandatory

P512 = 60

# Subscribe Expiration (in minutes). Default is 60. Max about 45 days

# Number: 1 - 64800

# Mandatory

P26251 = 60

# Reregister Before Expiration (in seconds). Default is 0 second

# Number: 0 - 64800

# Mandatory

P2530 = 0

# Enable OPTIONS Keep Alive

# Number: 0, 1

# Mandatory

P2597 = 0

# OPTIONS Keep Alive Interval (in seconds). Default is 30 seconds

# Number

# Mandatory

P2598 = 30

# OPTIONS Keep Alive Max Lost (number of max lost packets). Default is 3

# Number

# Mandatory

P2599 = 3

# Local SIP Port. Default is 5064

# Number

# Mandatory

P513 = 5064

# SIP Registration Failure Retry Wait Time (in seconds). Default is 20

# Number: 1 - 3600

# Mandatory

P571 = 20

# SIP T1 Timeout. RFC 3261 T1 value (RTT estimate)

# 50 - 0.5 sec, 100 - 1 sec, 200 - 2 sec. Default is 50

# Number: 50, 100, 200

# Mandatory

P540 = 50

# SIP T2 Timeout. RFC 3261 T2 value. The maximum retransmit interval for non-INVITE requests and INVITE responses

# 200 - 2 sec, 400 - 4 sec, 800 - 8 sec. Default is 400

# Number: 200, 400, 800

# Mandatory

P541 = 400

# SIP Transport. 0 - UDP, 1 - TCP, 2 - TLS/TCP. Default is 0

# Number: 0, 1, 2

# Mandatory

P548 = 0

# SIP URI Scheme when using TLS. 0 - sip, 1 - sips. Default is 1

# Number: 0, 1

# Mandatory

P2529 = 1

# Use Actual Ephemeral Port in Contact with TCP/TLS. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2531 = 0

# Outbond Proxy Mode. 0 - in route, 1 - not in route, 2 - always send to. Default is 0

# Number: 0, 1, 2

# Mandatory

P2505 = 0

# Support SIP Instace ID. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P589 = 1

# SUBSCRIBE for MWI. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P515 = 0

# SUBSCRIBE for Registration. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2519 = 0

# Enable 100rel. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P535 = 0

# Caller ID Display. 0 - Auto, 1 - Disabled, 2 - From Header. Default is 0

# Number: 0, 1, 2

# Mandatory

P2524 = 0

# Ignore Alert-Info header

# 0 - No, 1 - Yes. Default is 0

# Number 0,1

# Mandatory

P26218 = 0

# Add Auth Header On Initial REGISTER

# 0 - No, 1 - Yes. Default is 0

# Number 0,1

# Mandatory

P2559 = 0

############################################

# Account 3/SIP Settings/Custom SIP Headers

############################################

# Use Privacy Header

# 0 - Default, 1 - No, 2 - Yes. Default is 0

# Number: 0, 1, 2

# Mandatory

P2538 = 0

# Use P-Preferred-Identity Header

# 0 - Default, 1 - No, 2 - Yes. Default is 0

# Number: 0, 1, 2

# Mandatory

P2539 = 0

# Use X-Grandstream-PBX Header

# 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P26254 = 1

# Use P-Access-Network-Info Header

# 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P26258 = 1

# Use P-Emergency-Info Header

# 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P26259 = 1

# Use MAC Header

# 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P26261 = 0

##########################################

# Account 3/SIP Settings/Advanced Features

##########################################

# Line-seize Timeout (in seconds). Default is 15

# Number: 15-60

# Mandatory

P2513 = 15

# Eventlist BLF URI. For GXP1630/1628 only.

# String

P544 =

# Auto Provision Eventlist BLFs. For GXP1630/1628 only. 0 - disabled, 1 - enabled

# Number: 0, 1

# Default is 0

# Mandatory

P2589 = 0

# Conference URI

# String

P2518 =

# Music On Hold URI

# String

P2550 =

# Force BLF Call-pickup by prefix. For GXP1630/1628 only. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P6754 = 0

# BLF Call-pickup Prefix. For GXP1630/1628 only.

# String. Defaule is "**"

P581 = **

# Call Pickup Barge-In Code. For GXP1630/1628 only.

# String

P26246 =

# PUBLISH for Presence. For GXP1630/1628 only. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P588 = 0

# Enable User Presence Subscription

# Number: 0 - No, 1 - Yes. Default is 0.

# Mandatory

P2553 = 0

# Hide Login Soft Key On Auto User Presence Subscription

# Number: 0 - No, 1 - Yes. Default is 1.

# Mandatory

P2554 = 1

# Auto User Presence ID

# String

P2551 =

# Auto User Presence Password

# String

P2552 =

# Special Feature. 100 - Standard, 101 - Nortel MCS, 102- Broadsoft, 108 - CBCOM,

# 109 - RNK, 110 - Sylantro, 117 - Huawei IMS, 119 - Phonepower

# Default is 100

# Number: 100, 101, 102, 108, 109, 110, 117, 119

# Mandatory

P524 = 100

# Broadsoft Call Center. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2541 = 0

# Hoteling Event. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2542 = 0

# Call Center Status. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2543 = 0

# Feature Key Synchronization. 0 - Disabled, 1 - Enabled. Default is 0

# Number: 0, 1

# Mandatory

P2525 = 0

# Broadsoft Call Park

# Number: 0,1 - Default is 0

# Mandatory

P2588 = 0

##########################################

# Account 3/SIP Settings/Session Timer

##########################################

# Enable Session Timer. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P2595 = 1

# Session Expiration (in seconds). Default is 180

# Number: 90 - 64800

# Mandatory

P534 = 180

# Minimum SE (in seconds). Default is 90. This value must be lower than or equal to P434

# Number: 90 - 64800

# Mandatory

P527 = 90

# Caller Request Timer (Request for timer when calling). 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P528 = 0

# Callee Request Timer (Request for timer when called. i.e. if remote party supports timer but did not request for one)

# 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P529 = 0

# Force Timer (Still use timer when remote party does not support timer). 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P530 = 0

# UAC Specify Refresher. 0 - omit, 1 - UAC, 2 - UAS. Default is 0

# Number: 0, 1, 2

# Mandatory

P532 = 0

# UAS Specify Refresher. 1 - UAC, 2 - UAS. Default is 1

# Number: 1, 2

# Mandatory

P533 = 1

# Force INVITE (Always refresh with INVITE instead of UPDATE even when remote party supports UPDATE).

# 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P531 = 0

##########################################

# Account 3/SIP Settings/Security Settings

##########################################

# Check Domain Certificates. When set to Yes/Enabled, domain certificate will be checked as defined in RFC5922

# 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2511 = 0

# Validate Certification Chain. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2567 = 0

# Validate Incoming Messages. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2506 = 0

# Check SIP User ID for incoming INVITE. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P549 = 0

# Accept Incoming SIP from Proxy Only. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2547 = 0

# Authenticate Incoming INVITE. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2546 = 0

##########################################

# Account 3/Audio Settings

##########################################

# Send DTMF: In-audio. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2501 = 0

# Send DTMF: Via RTP (RFC2833). 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P2502 = 1

# Send DTMF: Via SIP INFO. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2503 = 0

# DTMF Payload Type. Default is 101

# Number: 96 - 127

# Mandatory

P596 = 101

# Preferred Vocoder

# 0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 - PCMA, 9 - G.722, 18 - G.729A/B, 98 - iLBC

# choice 1. Default is 0

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P551 = 0

# choice 2. Default is 8

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P552 = 8

# choice 3. Default is 18

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P553 = 18

# choice 4. Default is 9

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P554 = 9

# choice 5. Default is 2

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P555 = 2

# choice 6. Default is 2

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P556 = 2

# choice 7. Default is 2

# Number: 0, 2, 4, 8, 9, 18, 98

# Mandatory

P557 = 2

# Use First Matching Vocoder in 200OK SDP. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2548 = 0

# Codec Negotiation Priority. 0 - Caller, 1 - Callee. Default is 1

# Number: 0, 1

# Mandatory

P29261 = 1

# Disable Multiple m line in SDP. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P587 = 0

# SRTP Mode. 0 - Disabled, 1 - Enabled but not forced, 2 - Enabled and forced, 3 - Optional. Default is 0

# Number: 0, 1, 2, 3

# Mandatory

P543 = 0

# Symmetric RTP. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P560 = 0

# Silence Suppression. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P585 = 0

# Voice Frames per TX (up to 10/20/32/64 frames for G711/G726/G723/other codecs respectively). Default is 2

# Number: 1 - 64

# Mandatory

P586 = 2

# G723 Rate. 0 - 6.3kbps, 1 - 5.3 kbps. Default is 0

# Number: 0, 1

# Mandatory

P593 = 0

# G.726-32 Packing Mode. 0 - ITU, 1 - IETF. Default is 0

# Number: 0, 1

# Mandatory

P2523 = 0

# iLBC Frame Size, Default is 1. 0 - 20ms, 1 - 30ms.

# Number: 0, 1

# Mandatory

P595 = 1

# iLBC Payload Type, Default is 97

# Number: 96 - 127

# Mandatory

P594 = 97

# Jitter Buffer Type. 0 - Fixed, 1 - Adaptive. Default is 1

# Number: 0, 1

# Mandatory

P598 = 1

# Jitter Buffer Length. 0 - 100ms, 1 - 200ms, 2 - 300ms, 3 - 400ms, 4 - 500ms, 5 - 600ms, 6 - 700ms, 7 - 800ms

# Default is 2

# Number: 0, 1, 2, 3, 4, 5, 6, 7

# Mandatory

P597 = 2

# Hide Vocodec. 0 - No, 1 - Yes. Default is 0.

# Number: 0, 1

# Mandatory

P26247 = 0

##########################################

# Account 3/Call Settings

##########################################

# Early Dial (use "Yes" only if proxy supports 484 response). 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P522 = 0

# Dial Plan Prefix

# String

P519 =

# Dial Plan. Default is { x+ | *x+ | *xx*x+ }

# String

# Mandatory

P559 = { x+ | *x+ | *xx*x+ }

# Bypass Dial Plan. Default is Mpk

# String: Contact, Call History Incoming Call, Call History Outgoing Call, Dialing Page, Mpk, Api

# P2582 = Mpk

# Call Log. 0 - Log All, 1 - Log Incoming/Outgoing only (Missed calls NOT recorded), 2 - Disable Call Log. Default is 0

# Number: 0, 1, 2

# Mandatory

P542 = 0

# Send Anonymous (caller ID will be blocked if set to Yes). 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P521 = 0

# Anonymous Call Rejection. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P546 = 0

# Auto Answer. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P525 = 0

# Refer-To Use Target Contact. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P569 = 0

# Transfer on conference Hang-Up. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P2504 = 0

# Disable Recovery on Blind Transfer, 0 - No, 1- Yes. Default is 0

# Number: 0, 1

# Mandatory

P2584 = 0

# Blind Transfer Wait Timeout, in seconds. Default is 30

# Number: 30 to 300

P26270 = 30

# No Key Entry Timeout (in seconds). Default is 4

# Number: 1 - 15

# Mandatory

P591 = 4

# Key As Send. 0 - Disabled, 1 - Pound (#). Default is 1

# Number: 0, 1

# Mandatory

P592 = 1

# On Hold Reminder Tone.  0 - Disabled, 1 - Enabled. Default is 0

# Number: 0, 1

# Mandatory

P26206 = 0

# Call Recording ON

# String

P26228 =

# Call Recording OFF

# String

P26229 =

# Hide Password - Prefix for Dialing Password.

# String

P26249 =

# Hide Password - Password Length. Default is 0.

# Number: 0 - 32

P26250 = 0

# Remote Info Display

# 0 - Name and Number, 1 - Number, 2 - Name. Default is 0

# Number: 0, 1, 2

P26276 = 0

# Hide Remote User ID - Call Type. 0 - None of Call, 1 - Incoming Calls, 2 - Outgoing Calls, 3 - Both Directions. Default is 0-23

# Number: 0 - 3

# Mandatory

P26243 = 0

# Hide Remote User ID - Length

# Number: 0 ... N

P26244 = 0

# Account Ring Tone. 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 5

# Number: 0 - 12

P523 = 5

# Matching Incoming Caller ID. Matching Rule 1

# String

P1500 =

# Matching Rule 1 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P1501 = 0

# Matching Incoming Caller ID. Matching Rule 2

# String

P1502 =

# Matching Rule 2 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P1503 = 0

# Matching Incoming Caller ID. Matching Rule 3

# String

P1504 =

# Matching Rule 3 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P1505 = 0

# Matching Incoming Caller ID. Matching Rule 4

# String

P6728 =

# Matching Rule 4 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P6729 = 0

# Matching Incoming Caller ID. Matching Rule 5

# String

P6730 =

# Matching Rule 5 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P6731 = 0

# Matching Incoming Caller ID. Matching Rule 6

# String

P6732 =

# Matching Rule 6 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P6733 = 0

# Matching Incoming Caller ID. Matching Rule 7

# String

P26264 =

# Matching Rule 7 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P26265 = 0

# Matching Incoming Caller ID. Matching Rule 8

# String

P26266 =

# Matching Rule 8 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P26267 = 0

# Matching Incoming Caller ID. Matching Rule 9

# String

P26268 =

# Matching Rule 9 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P26269 = 0

# Matching Incoming Caller ID. Matching Rule 10

# String

P26296 =

# Matching Rule 10 Distinctive Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3

# 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8

# 11 - Custom Ringtone 9, 12 - Custom Ringtone 10, 4 - Silent, 5 - Default Ringtone

# Default is 0

# Number: 0 - 12

# Mandatory

P26297 = 0

# Ring Timeout (in seconds). Default is 60

# Number: 30 - 3600

# Mandatory

P576 = 60

###############################################################

# Account 3/Intercom Settings

###############################################################

# Allow Auto Answer by Call-Info/Alert-Info. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P538 = 0

# Mute on answer Intercom call. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P26271 = 0

# Play warning tone for Auto Answer Intercom. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P26272 = 0

# Custom Call-Info for Auto Answer.

# String

P2556 =

#####################################################

# Account 3/Feature Codes

#####################################################

# Enable Local Call Features.  0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P520 = 1

# DND Call Feature ON

# String

P2544 =

# DND Call Feature OFF

# String

P2545 =

# Call Forward Unconditionally (All) ON

# String

P26213 =

# Call Forward Unconditionally (All) - OFF

# String

P26214 =

# Call Forward Busy - ON

# String

P26209 =

# Call Forward Busy - OFF

# String

P26210 =

# Call Forward Delayed (No Answer) - ON

# String

P26211 =

# Call Forward Delayed (No Answer) - OFF

# String

P26212 =

# Delayed Call Forward Wait Time

# Number: 1 - 120. Default is 20.

# Mandatory

P570 = 20

##############################################################################

## Network/Basic Settings                                                   ##

##############################################################################

# Internet Protocol. 0 - Both, Prefer IPv4, 1 - Both, Prefer IPv6, 2 - IPv4 Only, 3 - IPv6 Only. Default is 0

# Number: 0, 1, 2, 3

# Mandatory

P1415 = 0

# IP Address Mode. 0 - DHCP, 1 - Static IP, 2 - PPPoE. Default is 0

# Number: 0, 1, 2

# Mandatory

P8 = 0

##########################################

# DHCP

##########################################

# Host name, DHCP option 12. Max length allowed is 64 characters

# String

P146 =

# Vendor Class ID, DHCP option 60. Max length allowed is 64 characters

# Default value for GXP1610 - Grandstream GXP1610

# Default value for GXP1620 - Grandstream GXP1620

# Default value for GXP1625 - Grandstream GXP1625

# Default value for GXP1625 - Grandstream GXP1628

# Default value for GXP1625 - Grandstream GXP1630

# String

# Cannot be empty

# P148 =

##########################################

# PPPoE

##########################################

# PPPoE Account ID

# String

P82 =

# PPPoE Password

# String

# Cannot contain ` or "

P83 =

# PPPoE Service Name

# String

P269 =

##########################################

# Statically Configured

##########################################

# IP Address. Ignore if DHCP or PPPoE is used

# Number: 0 - 255

P9 = 192

# Number: 0 - 255

P10 = 168

# Number: 0 - 255

P11 = 0

# Number: 0 - 255

P12 = 160

# Subnet mask. Ignore if DHCP or PPPoE is used

# Number: 0 - 255

P13 = 255

# Number: 0 - 255

P14 = 255

# Number: 0 - 255

P15 = 255

# Number: 0 - 255

P16 = 0

# Gateway. Ignore if DHCP or PPPoE is used

# Number: 0 - 255

P17 = 0

# Number: 0 - 255

P18 = 0

# Number: 0 - 255

P19 = 0

# Number: 0 - 255

P20 = 0

# DNS 1 Server. Ignore if DHCP or PPPoE is used

# Number: 0 - 255

P21 = 0

# Number: 0 - 255

P22 = 0

# Number: 0 - 255

P23 = 0

# Number: 0 - 255

P24 = 0

# DNS 2 Server. Ignore if DHCP or PPPoE is used

# Number: 0 - 255

P25 = 0

# Number: 0 - 255

P26 = 0

# Number: 0 - 255

P27 = 0

# Number: 0 - 255

P28 = 0

# Preferred DNS server.  (if specified).

# Number: 0 - 255

P92 = 0

# Number: 0 - 255

P93 = 0

# Number: 0 - 255

P94 = 0

# Number: 0 - 255

P95 = 0

# IPv6 Address type. 0 - Auto Configured, 1 - Statically Configured. Default is 0.

# Number: 0, 1

# Mandatory

P1419 = 0

# IPv6 Address type: Statically configured. 0 - Full Static, 1 - Prefix Static

# Number: 0, 1

P1426 = 0

# Full Static: Static IPv6 Address

P1420 =

# Full Static: IPv6 Prefix Length

P1421 =

# Prefix Static: IPv6 Prefix (64bits)

P1422 =

# DNS Server 1 for IPv6 Address

# String: a-z, A-Z, 0-9, ".", ":", "[", "]"

P1424 =

# DNS Server 2 for IPv6 Address

# String: a-z, A-Z, 0-9, ".", ":", "[", "]"

P1425 =

# Preferred DNS Server for IPv6 Address

# String: a-z, A-Z, 0-9, ".", ":", "[", "]"

P1423 =

##############################################################################

## Network/Advanced Settings

##############################################################################

# 802.1X Mode. 0 - disable, 1 - EAP-MD5, 2 - EAP-TLS, 3 - EAP-PEAPv0/MSCHAPv2. Default is 0

# Number: 0, 1, 2, 3

# Mandatory

P7901 = 0

# 802.1X Identity. Max length allowed is 64 characters

# String

P7902 =

# MD5 Password. Max length allowed is 64 characters

# String

P7903 =

# HTTP Proxy

# String

P1552 =

# HTTPS Proxy

# String

P1553 =

# Layer 3 QoS for SIP. Default is 26

# Number: 0 - 63

# Mandatory

P1558 = 26

# Layer 3 QoS for RTP. Default is 46

# Number: 0 - 63

# Mandatory

P1559 = 46

# Enable DHCP VLAN, 0 - Disable, 1 - Enable. Default is 0

# Number: 0, 1

# Mandatory

P8300 = 0

# Enable Manual VLAN Configuration. 0 - Disable, 1 - Enable. Default is 1

# Number: 0, 1

# Mandatory

P22174 = 1

# Layer 2 QoS. 802.1Q/VLAN Tag (VLAN classification for RTP). Default is 0

# Number: 0 - 4094

# Mandatory

P51 = 0

# Layer 2 QoS. 802.1p priority value (0 - 7). Default is 0

# Number: 0 - 7

# Mandatory

P87 = 0

# PC Port Mode. 0 - Enable, 1 - Disabled, 2 - Mirrored. Default is 0

# Number: 0, 1, 2

# Mandatory

P1348 = 0

# PC Port VLAN Tag. Default is 0

# Mandatory

P229 = 0

# PC Port Priority Value. Default is 0

# Mandatory

P230 = 0

# Enable CDP.   0 - Disabled, 1 - Enabled. Default is 0

# Number: 0, 1

# Mandatory

P22119 = 0

# Enable LLDP.  0 - Disabled, 1 - Enabled. Default is 1

# Number: 0, 1

# Mandatory

P1684 = 1

# Maximum Transmission Unit (MTU) in bytes, default is 1500 bytes

# Number

# Mandatory

P244 = 1500

##############################################################################

##  Network/Remote Control

##############################################################################

# CSTA Control. 0 - Disabled, 1 - Enabled

# Number: 0, 1. Default is 0

# Mandatory

P32053 = 0

##############################################################################

## Network/OpenVPN Settings

##############################################################################

# OpenVPN Enable. 0 - No, 1 - Yes, default is 0

# Number

# Mandatory

P7050 = 0

# OpenVPN Server Address

# String

P7051 =

# OpenVPN Port. Default is 1194

# Number

# Mandatory

P7052 = 1194

# OpenVPN Transport.  0 - UDP, 1 - TCP Default is 0

# Number: 0, 1

# Mandatory

P2912 = 0

# OpenVPN CA

# String

P9902 =

# OpenVPN Certificate

# String

P9903 =

# OpenVPN Client Key

# String

P9904 =

# OpenVPN Cipher Method

# Number: 0 - Blowfish, 1 - AES-128, 2 - AES-256, 3 - Triple-DES. Default is 0.

P8396 = 0

# OpenVPN Username

# String

P8394 =

# OpenVPN Password

# String

P8395 =

# OpenVPN Comp-lzo. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P8508 = 1

# Additional Options

# String

P8460 =

#####################################################

# Network/SNMP Settings

#####################################################

# Enable SNMP

# Number: 0 - No, 1 - Yes. Default is 0.

# Mandatory

P21896 = 0

# Version. 1 - Version 1, 2 - Version 2, 3 - Version 3. Default is 3

# Number: 1, 2, 3

# Mandatory

P21904 = 3

# Port

# Number

P21903 = 161

# SNMP Trap IP

# String

P21897 =

# SNMP Trap Port

# Number: 1025 - 65535. Default is 162.

# Mandatory

P21898 = 162

# SNMP Trap Interval

# Number: 1 - 1440. Default is 5.

# Mandatory

P21901 = 5

# SNMP Trap Version

# Number: 1 - Version 1, 2 - Version 2, 3 - Version 3. Default is 2

# Mandatory

P21899 = 2

# Community

# String

P21902 =

# SNMP Trap Community

# String

P21900 =

# SNMP Username

# String

P21905 =

# Security Level. 0 - noAuthUser, 1 - authUser, 2 - privUser. Default is 0

# Number: 0, 1, 2

# Mandatory

P21910 = 0

# Authentication Protocol. 0 - None, 1 - MD5, 2 - SHA. Default is 0

# Number: 0, 1, 2

# Mandatory

P21906 = 0

# Privacy Protocol. 0 - None, 1 - DES, 2 - AES. Default is 0

# Number: 0, 1, 2

# Mandatory

P21907 = 0

# Authentication Key

# String

P21908 =

# Private Key

# String

P21909 =

# SNMP Trap Username

# String

P21911 =

# Trap Security Level. 0 - noAuthUser, 1 - authUser, 2 - privUser. Default is 0

# Number: 0, 1, 2

# Mandatory

P21916 = 0

# Trap Authentication Protocol. 0 - None, 1 - MD5, 2 - SHA. Default is 0

# Number: 0, 1, 2

# Mandatory

P21912 = 0

# Trap Privacy Protocol. 0 - None, 1 - DES, 2 - AES. Default is 0

# Number: 0, 1, 2

# Mandatory

P21913 = 0

# Trap Authentication Key

# String

P21914 =

# Trap Private Key

# String

P21915 =

##############################################################################

##  Maintenance/ Web Access

##############################################################################

# New User Password

# String: a-z, A-Z, 0-9

# P196 =

# New Admin password for web interface

# String: a-z, A-Z, 0-9

# P2 =

##############################################################################

##  Maintenance/Upgrade and Provisioning

##############################################################################

# Firmware Upgrade and Provisioning

# 0 - Always Check For New Firmware

# 1 - Check New Firmware only when F/W pre/suffix changes

# 2 - Always Skip the Firmware Check

# Number: 0, 1, 2

# Mandatory

P238 = 0

# Always Authenticate Before Challenge. 0 - No,  1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P20713 = 0

# Validate Hostname in Certificate. 0 - No,  1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P22030 = 0

# Allow DHCP Option 43 and Option 66 to override server. 0 - No, 1 - Yes. Default is 1

# When set to Yes(1), it will override the configured provision path and method

# Number: 0, 1

# Mandatory

P145 = 1

# Additional Override DHCP option

# 0 - None, 1 - Option 150, 2 - Option 160

# Number: 0, 1, 2

# Mandatory

P8337 = 0

# Allow DHCP Option 120 to Override SIP Server

# 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P1411 = 0

# 3CX Auto Provision. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P1414 = 1

# Automatic Upgrade

# 0 - No,

# 1 - Yes, check for upgrade based on minute(s) setting,

# 2 - Yes, check for upgrade based on Hour of Day setting,

# 3 - Yes, check for upgrade based on Day of Week setting,

# Default is No.

# Number: 0, 1, 2, 3

# Mandatory

P194 = 0

# Randomized Automatic Upgrade. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P8458 = 0

# Check for new firmware every () minutes. Default is 7 days.

# Number: 60-86400

# Mandatory

P193 = 10080

# Hour of the Day (0-23). Default is 1

# Number: 0 - 23

# Mandatory

P285 = 1

# Day of the Week (0-6). Default is 1

# Number: 0-6

# Mandatory

P286 = 1

# Disable SIP NOTIFY Authentication. 0 -No, 1 - Yes. Default is 0.

# Number: 0, 1

# Mandatory

P4428 = 0

# Firmware Upgrade Confirmation. 0 - No, 1 - Yes. Default is 1.

# Number: 0, 1

# Mandatory

P8375 = 1

# Config Upgrade Via. 0 - TFTP,  1 - HTTP, 2 - HTTPS, 3 - FTP, 4 - FTPS. Default is 1

# Number: 0, 1, 2, 3, 4

# Mandatory

P212 = 1

# Config Server Path

# String

P237 = fm.grandstream.com/gs

# Config HTTP/HTTPS User Name

# String

P1360 =

# Config HTTP/HTTPS Password

# String

P1361 =

# Config File Prefix

# String

P234 =

# Config File Postfix

# String

P235 =

# XML Config File Password

# String

P1359 =

# Authenticate Conf File. 0 - No, 1 - Yes. Default is No

# Number: 0, 1

# Mandatory

P240 = 0

# Firmware Upgrade Via. 0 - TFTP,  1 - HTTP, 2 - HTTPS, 3 - FTP, 4 - FTPS. Default is 1

# Number: 0, 1, 2, 3, 4

# Mandatory

P6767 = 1

# Firmware Server Path

# String

P192 = fm.grandstream.com/gs

# Firmware HTTP/HTTPS User Name

# String

P6768 =

# Firmware HTTP/HTTPS Password

# String

P6769 =

# Firmware File Prefix

# String

P232 =

# Firmware File Postfix

# String

P233 =

##############################################################################

##  Maintenance/Syslog

##############################################################################

# Syslog Protocol

# 0 - UDP, 1 - SSL/TLS. Default is 0

# Number: 0, 1

# Mandatory

P8402 = 0

# Syslog Server (name of the server, max length is 64 characters)

# String

P207 =

# Syslog Level. 0 - NONE, 1 - DEBUG, 2 - INFO, 3 - WARNING, 4 - ERROR. Default is 0

# Number: 0, 1 , 2, 3, 4

# Mandatory

P208 = 0

# Syslog Keyword Filtering

# String

P22129 =

# Send SIP Log. 0 - Do not send SIP log in Syslog, 1 - Send SIP log in Syslog if configured and set to DEBUG level. Default is 0

# Number: 0, 1

# Mandatory

P1387 = 0

##############################################################################

##  Maintenance/Language

##############################################################################

# Display Language. Default is auto

# ar - Arabic, cs - Czech, de - Deutsh

# en - English, es - Spanish, fr - Francais

# he - Hebrew, hr - Hrvatski, hu - Magyar

# it - Italiano, ja - japanese, ko - korean

# lv - Latvian, nl - Dutch, pl - Polski, pt - Portugue

# ru - Russian, sl - Slovenian, se - Svenska

# tr - Turkish, zh-tw - traditional chinese,

# zh - simplified chinese, auto - Automatic

# gxp - Downloaded Language

# String

# Mandatory

P1362 = auto

# Language File postfix (for Downloaded Language)

# String

P399 =

##############################################################################

##  Maintenance/Action URL

##############################################################################

# Setup Completed

# String

P8304 =

# Registered

# String

P8305 =

# Unregistered

# String

P8306 =

# Register Failed

# String

P8307 =

# Off Hook

# String

P8308 =

# On Hook

# String

P8309 =

# Incoming Call

# String

P8310 =

# Outgoing Call

# String

P8311 =

# Missed Call

# String

P8312 =

# Answered Call

# String

P22171 =

# Rejected Call

# String

P8315 =

# Forwarded Call

# String

P22172 =

# Established Call

# String

P8313 =

# Terminated Call

# String

P8314 =

# Open DND

# String

P8316 =

# Close DND

# String

P8317 =

# Open Forward

# String

P8318 =

# Close Forward

# String

P8319 =

# Open Unconditional Forward

# String

P22164 =

# Close Unconditional Forward

# String

P22165 =

# Open Busy Forward

# String

P22166 =

# Close Busy Forward

# String

P22167 =

# Open No Answer Forward

# String

P22168 =

# Close No Answer Forward

# String

P22169 =

# Blind Transfer

# String

P8320 =

# Attended Transfer

# String

P8321 =

# Hold Call

# String

P8324 =

# Unhold Call

# String

P8325 =

# Open Syslog

# String

P8330 =

# Close Syslog

# String

P8331 =

# IP Change

# String

P22170 =

# Auto-Provision Finish

# String

P8332 =

##############################################################################

##  Maintenance/TR-069

##############################################################################

# ACS URL

# String

P4503 =

# TR-069 Username

# String

P4504 =

# TR-069 Password

# String

P4505 =

# Periodic Inform Enable. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P4506 = 0

# Periodic Inform Interval

# Number

P4507 = 86400

# Connection Request Username

# String: a-z, A-Z, 0-9

P4511 =

# Connection Request Password

# String: a-z, A-Z, 0-9

P4512 =

# Connection Request Port

# Number

P4518 = 7547

# CPE SSL Certificate

# String: a-z, A-Z, 0-9

P8220 =

# CPE SSL Private Key

# String: a-z, A-Z, 0-9

P8221 =

# Randomized TR069 Startup. 0 - Disabled, 1 - Enabled. Default is 0

# Number: 0, 1

# Mandatory

P8487 = 0

##########################################

##  Maintenance/Security Settings/Security

##########################################

# Configuration Via Keypad Menu. 0 - Unrestricted, 1 - Basic settings only, 2 - Constraint mode, 3 - Locked mode. Default is 0

# Number: 0, 1, 2, 3

# Mandatory

P1357 = 0

# Enable STAR key Keypad locking. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P1382 = 0

# Keypad Lock Type. 0 - Full, 1 - Functional. Default is 0

# Number: 0, 1

# Mandatory

P8383 = 0

# Password to lock/unlock (0-9 only)

# Number

P1383 =

# Emergency Numbers

# String

P8385 =

# Keypad Lock Timer

# Number: 0 - 3600

P8384 =

# Validate Server Certificates. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P8463 = 0

# SIP TLS Certificate

# String: a-z, A-Z, 0-9

#P280 =

# SIP TLS Private Key

# String: a-z, A-Z, 0-9

#P279 =

# SIP TLS Private Key Password

# String: a-z, A-Z, 0-9

P281 = s1pphone

# Web Access Mode. 0 - HTTPS, 1 - HTTP, 2 - Disabled. Default is 1

# Number: 0, 1, 2

# Mandatory

P1650 = 1

# Enable User Web Access. 0 - Disabled, 1 - Enabled. Default is 1

# Number: 0, 1

# Mandatory

P8469 = 1

# HTTP Web Port. Default is 80

# Number: 60 - 65535

# Mandatory

P22120 = 80

# HTTPS Web Port. Default is 443

# Number: 60 - 65535

# Mandatory

P22121 = 443

# Disable SSH. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

P276 = 0

# Web/Keypad/Restrict mode Lockout Duration (0-60 minutes). Default is 5

# Number: 0-60

P1683 = 5

# Web Session Timeout. Default is 10.

# Number: 2-60

# Mandatory

P28116 = 10

# Web Access Attempt Limit. Default is 5.

# Number: 1-10

# Mandatory

P28117 = 5

# Minimum TLS Version. 10 - TLS 1.0, 11 - TLS 1.1, 12 - TLS 1.2. Default is 11.

# Number: 10, 11, 12

# Mandatory

P22293 = 11

# Maximum TLS Version. 99 - Unlimited, 10 - TLS 1.0, 11 - TLS 1.1, 12 - TLS 1.2. Default is 99

# Number: 99, 10, 11, 12

# Mandatory

P22294 = 99

# Enable/Disable Weak Ciphers. Default is 0

# 0 - Enable Weak TLS Ciphers Suites

# 1 - Disable Symmetric Encryption RC4/DES/3DES

# 2 - Disable Symmetric Encryption SEED

# 3 - Disable All Weak Symmetric Encryption

# 4 - Disable Symmetric Authentication MD5

# 5 - Disable All Weak TLS Cipher Suites

# Number: 0 - 5

P8536 = 0

########################################################

##  Maintenance/Security Settings/Trusted CA Certificate

########################################################

# Trusted CA Certificate

# String

P8433 =

P8434 =

P8435 =

P8436 =

P8437 =

P8438 =

# Load CA Certificates. 0 - Default Certificates, 1 - Custom Certificates, 2- All Certificates. Default is 2

# Number: 0, 1, 2

P8502 = 2

##############################################################################

##  Phonebook/Phonebook Management

##############################################################################

# Enable Phonebook XML Download. # 0 - No, 1 - YES, HTTP, 2 - YES, TFTP, 3 - Yes, HTTPS. Default is 0

# Number: 0, 1, 2, 3

# Mandatory

P330="3"

# HTTP/HTTPS User name

# String

P6713 =

# HTTP/HTTPS Password

# String

P6714 =

# Phonebook XML Server Path

# This is a string of up to 256 characters that should contain a path to the XML file. It MUST be in the host/path format.

# For example: directory.grandstream.com/engineering

# String

P331="sonictel-prov-files.s3.us-east-2.amazonaws.com/kawasaki"

######################################

NOTE:

1. The phone book file name MUST BE phonebook.xml

2.  As the same with Grandstream firmware, you reference the folder but NOT the actual file.  Below is the full file path but we don't include phonebook.xml in the P331 string.

https://sonictel-prov-files.s3.us-east-2.amazonaws.com/kawasaki-phonebook/phonebook.xml

P330="3"

P331="sonictel-prov-files.s3.us-east-2.amazonaws.com/kawasaki-phonebook"

##################################################

# Phonebook Download Interval (in minutes)

# Valid value range is 5-720. Default is 0 for disabled

# Number: 0, 5-720;

P332="720"

# Remove Manually-edited entries on Download. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P333="0"

# Import Group Method. 0 - Replace, 1 - Append. Default is 0

# Number: 0, 1

# Mandatory

P8462="0"

# Sort Phonebook by. 0 - Last Name. 1 - First Name. Default is 0

# Number: 0, 1

# Mandatory

P2914 = 0

# Phonebook Key Function. 0 - Default, 1 - LDAP Search, 2 - Local Phonebook, 3 - Local Group, 4 - Broadsoft Phonebook.

# Number: 0, 1, 2, 3, 4.

# Mandatory

P1526="2"

##############################################################################

##  Phonebook/LDAP

##############################################################################

# LDAP Directory

# LDAP Protocol. 0 - LDAP, 1 - LDAPS. Default is 0.

# Number: 0, 1

P8370 = 0

# LDAP Server Address, up to 256 characters can be used. It can be IP address or Domain name

# String

P8020 =

# LDAP Server Port. Default is 389.

# Number: 1 - 65535

P8021 = 389

# Base. The LDAP search base refers to the location in the directory where the search is requested to begin

# Example 1: dc=grandstream,dc=com

# value i 2: ou=Boston, dc=grandstream,dc=com

# String

P8022 =

# User name. The bind "Username" for querying LDAP servers. Some LDAP servers allow anonymous binds in which case the setting can be left blank

# String

P8023 =

# Password. The bind "Password" for querying LDAP servers. And the field can be left blank if the LDAP server allows anonymous binds

# String

P8024 =

# LDAP Number Filter

# LDAP name filter is the filter used for name look ups. Please refer to usermanual for examples

# String

P8025 =

# LDAP Name Filter

# LDAP name filter is the filter used for name look ups. Please refer to usermanual for examples

# String

P8026 =

# LDAP Version. Protocol version for the phone when send the bind requests

# 2 - version 2, 3 - version 3. Default is 3

# Mandatory

P8027 = 3

# LDAP Name Attributes. This setting specifies the "name" attributes of each record which are returned in the LDAP search result

# The setting allows the users to configure multiple space separated name attributes

# String

P8028 =

# LDAP Number Attributes. This setting specifies the “number” attributes of each record which are returned in the LDAP search result

# The setting allows the users to configure multiple space separated number attributes

# String

P8029 =

# LDAP Display Name. The entry information to be shown on phone LCD. Grandstream phones will display up to 3 fields

# String

P8030 =

# Max Hits. The setting specifies the maximum number of results to be returned by the LDAP server

# If the value is set to 0, server will return all search results. Default is 50

# Number: 0 - 32000

# Mandatory

P8031 = 50

# Search Timeout (in seconds). Default is 30

# The setting specifies how long the server should process the request and client waits for server to return

# Number: 0 - 180

# Mandatory

P8032 = 30

# Sort Results. This setting is used for sorting searching result. 0 - no, 1 - yes. Default is 0

# Number: 0, 1

# Mandatory

P8033 = 0

# LDAP Lookup

# Incoming calls. 0 - No, 1 - Yes. Default is 0

P8035 = 0

# Outgoing calls. 0 - No, 1 - Yes. Default is 0

P8034 = 0

# Lookup Display Name

# String

P8036 =

##############################################################################

##  Settings/General Settings

##############################################################################

# Local RTP port. Default is 5004

# Number: 1024 - 65535. Must be even number

# Mandatory

P39 = 5004

# Local RTP port range

# Number: 48 - 10000. Default is 200.

P29610 = 200

# Use Random Port. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P78 = 0

# Keep-alive interval (in seconds). Default is 20

# Number: 10 - 160

# Mandatory

P84 = 20

# Use NAT IP. This will enable our SIP client to use this IP in the SIP/SDP message. Example 64.3.153.50

# String: a-z, A-Z, 0-9, ".", ":"

P101 =

# STUN server

# String

P76 =

# Public Mode. 0 - No. 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P1345 = 0

# Enable Fix For RTP Timestamp Jump

# Number: 0 - No, 1 - Yes. Default is 0.

P8389 = 0

# Test Password Strength. Default is 0.

# Number: 0, 1. 0 - No, 1 - Yes.

P8468 = 0

# DNS Cache Refresh Time, in minutes. Default is 30

# Number: 5 - 1440

P4208 =

##############################################################################

##  Settings/Call Features

##############################################################################

# Onhook Dial Barging. Default is 1

# Number: 0 - Disabled, 1 - Enabled.

# Mandatory

P8397 = 1

# Off-hook Auto Dial

# String

P71 =

# Off-hook Auto Dial Delay

# Number: 0 - 30

# Mandatory

P8388 = 0

# Off-hook timeout (in seconds). Default is 30

# Number: 10 - 60

# Mandatory

P1485 = 30

# Enable Live DialPad.

# Number: 0 - No, 1 - Yes. Default is 0.

# Mandatory

P8350 = 0

# Live DialPad Expire Time

# Number: 2 - 15. Default is 5.

# Mandatory

P8351 = 5

# Busy Tone Expiration

# Number: 0 - 60. Default is 30.

P8443 = 30

# Enable Automatic Redial

# Number: 0 - No, 1 - Yes. Default is 0.

# Mandatory

P8353 = 0

# Automatic Redial Times

# Number: 1 - 100. Default is 10.

# Mandatory

P8354 = 10

# Automatic Redial Interval

# Number: 1 - 360. Default is 20.

# Mandatory

P8355 = 20

# Intercom Key Mode. 0 - Intercom, 1 - Multicast Paging. Default is 0.

# Number: 0, 1

# Mandatory

P22123 = 0

# Intercom User ID

# String

P1303 =

# Intercom Multicast Paging Address

# String

P22124 =

# Intercom Multicast Paging Label

# String

P22125 =

# Bypass Dial Plan Through Call History and Directories

# Number: 0,1. Default is 0

# Mandatory

P6758 = 0

# Disable Call Waiting. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P91 = 0

# Disable Call-Waiting Tone. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P186 = 0

# Ring For Call Waiting

# Number: 0 - No, 1 - Yes. Default is 0.

# Mandatory

P22102 = 0

# Disable Busy Tone on Remote Disconnect. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P6762 = 0

# Disable Direct IP Call. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P1310 = 0

# Use Quick IP Call mode. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P184 = 0

# Disable Conference. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P1311 = 0

# Disable in-call DTMF Display. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P338 = 0

# Enable Sending DTMF via Specific MPKs. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P1339 = 0

# Mute Key Functions While Idle. 0 - DND, 1 - Idle Mute, 2 - Disabled. Default is 0

# Number: 0, 1, 2

# Mandatory

P1565 = 0

# Disable Transfer. 0 - No, 1 - Yes. Defauls is 0

# Number: 0, 1

# Mandatory

P1341 = 0

# In-call Dial Number on pressing transfer key

# String

P1525 =

# Attended Transfer Mode

# Number: 0 - Static, 1 - Dynamic. Default is 0.

# Mandatory

P1376 =

# Do not escape '#' as 23% in SIP URL. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P1406 = 0

# Use Pound # For Redial. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P8504 = 1

# Click-To-Dial Feature. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P1561 = 0

# Call History Flash Writing: 0 means this option is disabled

# Write Timeout, 30-3600, in seconds, default is 300

# Number: 30 - 3600

# Mandatory

P1433 = 300

# Max Unsaved Log, 0-500, default is 200

# Number: 0-500

# Mandatory

P1434 = 200

# User-Agent Prefix

# String

P8358 =

# Predictive Dialing Feature. 0 - disabled, 1 - enabled. Default is 1

# Number: 0, 1

# Mandatory

P22126 = 1

# Disable Hook Switch

# Number: 0 - No, 1 - Yes, 2 - For Answering Call. Default is 0.

# Mandatory

P6763 = 0

# Show SIP Error Response. 0 - No, 1 - Yes. Default is 1.

# Number: 0, 1

# Mandatory

P8376 = 1

# Auto Answer Delay. Default is 0.

# Number: 0 - 4.

# Mandatory

P8486 = 0

# Enable Enhanced Acoustic Echo Canceller. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P22175 = 1

# Show On Hold Duration. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P8503 = 0

# Hide/Disable Reject Key. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P8511 = 0

# Enable Diversion Information Display. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P22237 = 1

####################################################################

# Blink message LED on ringing - GXP1610 only

####################################################################

# Blink message LED on ringing. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P1696 = 0

####################################################################

##############################################################################

##  Settings/Multicast Paging

##############################################################################

# Paging Barge. 0 - Disable, 1 - priority 1, 2 - priority 2, 3 - priority 3,

# 4 - priority 4, 5 - priority 5, 6 - priority 6, 7 - priority 7, 8 - priority 8,

# 9 - priority 9, 10 - priority 10. Default is 0.

# Number: 0 - 10

# Mandatory

P1566 = 0

# Paging Priority Active. 0 - Disabled, 1 - Enabled

# Number: 0, 1

# Mandatory

P1567 = 0

# Multicast Paging Codec. 0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 - PCMA, 9 - G.722, 18 - G.729A/B

# Number: 0, 2, 4, 8, 9, 18

# Mandatory

P1568 = 0

# Multicast Channel Number. 0 - 50. Default is 0

# Number

# Mandatory

P8454 = 0

# Multicast Sender ID

# String

P8455 =

### Multicast Listening ###

# Priority 1

# Listening Address

# String

P1569 =

# Label

# String

P1570 =

# Priority 2

# Listening Address

# String

P1571 =

# Label

# String

P1572 =

# Priority 3

# Listening Address

# String

P1573 =

# Label

# String

P1574 =

# Priority 4

# Listening Address

# String

P1575 =

# Label

# String

P1576 =

# Priority 5

# Listening Address

# String

P1577 =

# Label

# String

P1578 =

# Priority 6

# Listening Address

# String

P1579 =

# Label

# String

P1580 =

# Priority 7

# Listening Address

# String

P1581 =

# Label

# String

P1582 =

# Priority 8

# Listening Address

# String

P1583 =

# Label

# String

P1584 =

# Priority 9

# Listening Address

# String

P1585 =

# Label

# String

P1586 =

# Priority 10

# Listening Address

# String

P1587 =

# Label

# String

P1588 =

##############################################################################

##  Settings/Preferences/Audio Control

##############################################################################

# HEADSET Key Mode. 0 = Default Mode, 1 = Toggle Headset/Speaker. Default is 0

# Number: 0, 1

# Mandatory

P1312 = 0

# Headset Type. 0 - Normal, 1 - Plantronics EHS. Default is 0

# Number: 0, 1

# Mandatory

P1487 = 0

# Always Ring Speaker. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P1439 = 0

# Enable Group Listening. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P22100 = 0

# Grouop Listen with Speaker. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P22163 = 0

# Headset TX gain(db). 1 - -6, 0 - 0, 2 - +6. Default is 0

# Number: 0, 1, 2

# Mandatory

P1301 = 0

# Headset RX gain(db). 1 - -6, 0 - 0, 2 - +6. Default is 0

# Number: 0, 1, 2

# Mandatory

P1302 = 0

# Handset TX gain(db). 1 - -6, 0 - 0, 2 - +6. Default is 0

# Number: 0, 1, 2

# Mandatory

P1464 = 0

##############################################################################

##  Settings/Preferences/Date and Time

##############################################################################

# NTP Server

# String

P30 = pool.ntp.org

# Allow DHCP Option 42 to override NTP server. 0 - No, 1 - Yes. Default is 1

# When set to Yes(1), it will override the configured NTP server

# Number: 0, 1

# Mandatory

P144 = 1

# Time Zone

# Web GUI Option                                        P Value

# Automatic                                                auto

# GMT-12:00 (International Date Line West)                TZA+12

# GMT-11:00 (Midway Island, Samoa)                         TZB+11

# GMT-10:00 (US Hawaiian Time)                             HAW10

# GMT-9:00 (US Alaska Time)                             AKST9AKDT

# GMT-8:00 (US Pacific Time, Los Angeles)                PST8PDT

# GMT-08:00 (Baja California)                            PST8PDT,M3.2.0,M11.1.0

# GMT-07:00 (US Mountain Time, Denver)                     MST7MDT

# GMT-07:00 (Mountain Time (Arizona, no DST))             MST7

# GMT-07:00 (Chihuahua, La Paz, Mazatlan)                MST7MDT,M4.1.0,M10.5.0

# GMT-06:00 (Central Time)                                 CST6CDT

# GMT-06:00 (Central America)                             CST+6

# GMT-06:00 (Guadalajara, Mexico City, Monterrey)        CST6CDT,M4.1.0,M10.5.0

# GMT-05:00 (Eastern Time)                                EST5EDT

# GMT-05:00 (Eastern Time without daylight saving)         EST5

# GMT-04:30 (Caracas)                                     TZf+4:30

# GMT-04:00 (Atlantic Time)                             AST4ADT

# GMT-04:00 (Atlantic Time (New Brunswick))             AST4ADT,M3.2.0,M11.1.0

# GMT-03:30 (Newfoundland Time)                            NST+3:30NDT+2:30,M3.2.0/00:01:00,M11.1.0/00:01:00

# GMT-03:00 (Greenland)                                 TZK+3

# GMT-03:00 (Brazil, Sao Paulo)                         BRST+3BRDT+2,M10.3.0,M2.3.0

# GMT-02:00 (Argentina)                                 UTC+3

# GMT-02:00 (Mid-Atlantic)                                 TZL+2

# GMT-01:00 (Azores, Cape Verdi Is.)                     TZM+1

# GMT (Edinburgh, Casablanca, Monrovia)                 TZN+0

# GMT (London, Great Britain)                             GMT+0BST-1,M3.5.0/01:00:00,M10.5.0/02:00:00

# GMT (Lisbon, Portugal)                                 WET-0WEST-1,M3.5.0/01:00:00,M10.5.0/02:00:00

# GMT (Dublin, Ireland)                                 GMT+0IST-1,M3.5.0/01:00:00,M10.5.0/02:00:00

# GMT+01:00 (Paris, Vienna, Warsaw, Roma, Madrid, Prague, Berlin, Budapest, Amsterdam, Belgium)   CET-1CEST-2,M3.5.0/02:00:00,M10.5.0/03:00:00

# GMT+02:00 (Israel, Cairo, Athens, Istanbul, Buchrest) TZP-2

# GMT+02:00 (Helsinki, Athens, Tallinn)                 EET-2EEST-3,M3.5.0/03:00:00,M10.5.0/04:00:00

# GMT+02:00 (Kyiv, Ukraine)                             EET-2EEST,M3.5.0/3,M10.5.0/4

# GMT+03:00 (Kuwait, Baghdad, Tehran, Nairobi)             TZQ-3

# GMT+03:00 (Moscow, Russia)                             MSK-3MSD,M3.5.0/2,M10.5.0/3

# GMT+03:00 (St.Petersburg, Russia)                     MST-3MDT,M3.5.0/2,M10.5.0/3

# GMT+04:00 (Abu Dhabi, Baku)                             TZR-4

# GMT+05:00 (Islamabad, Ekaterinburg, Karachi, Tashkent)TZS-5

# GMT+05:30 (Chennai, New Delhi, Mumbai)                 TZT-5:30

# GMT+05:45 (Kathmandu)                                 TZU-5:45

# GMT+06:00 (Almaty, Astana, Dhaka, Novosibirsk)         TZV-6

# GMT+06:30 (Rangoon)                                     TZW-6:30

# GMT+07:00 (Bankok, Hanoi, Krasnoyarsk)                 TZX-7

# GMT+07:00 (Jakarta)                                     WIB-7

# GMT+08:00 (Beijing, Taipei, Kuala Lumpur, Irkutsk)     TZY-8

# GMT+08:00 (Singapore)                                 SGT-8

# GMT+08:00 (Ulaanbaatar, Mongolia)                     ULAT-8

# GMT+08:00 (Perth)                                     WST-8

# GMT+09:00 (Japan, Korea, Yakutsk)                     TZZ-9

# GMT+09:30 (Adelaide)                                     CST-9:30CDT-10:30,M10.5.0/02:00:00,M3.5.0/03:00:00

# GMT+09:30 (Darwin)                                     CST-9:30

# GMT+10:00 (Guam)                                         TZb-10

# GMT+10:00 (Hobart)                                     EST-10EDT-11,M10.1.0/02:00:00,M3.5.0/03:00:00

# GMT+10:00 (Sydney, Melbourne, Canberra)                 EST-10EDT-11,M10.5.0/02:00:00,M3.5.0/03:00:00

# GMT+10:00 (Brisbane)                                     EST-10

# GMT+11:00 (Magadan, Solomon Is., New Caledonia)         TZc-11

# GMT+12:00 (Auckland, Wellington)                         NZST-12NZDT-13,M10.1.0/02:00:00,M3.3.0/03:00:00

# GMT+12:00 (Fiji)                                         TZd-12

# GMT+13:00 (Nuku'alofa)                                 TZe-13

# Self-Defined Time Zone                                customize

# String

# Mandatory

P64 = auto

# Allow DHCP Option 2 to override Time Zone setting. 0 - No, 1 - Yes. Default is 1

# When set to Yes(1), it will override the configured Time Zone setting if available

# Number: 0, 1

# Mandatory

P143 = 1

# Self Defined Time zone. Max length allowed is 64 characters

# String

# Mandatory

P246 = MTZ+6MDT+5,M4.1.0,M11.1.0

# Date Display Format

# 0: yyyy-mm-dd      eg. 2011-10-31

# 1: mm-dd-yyyy      eg. 10-31-2011

# 2: dd-mm-yyyy      eg. 31-10-2011

# 3: dddd, MMMM dd   eg. Monday, October 31

# 4: MMMM dd, dddd   eg. October 31, Monday

# Number: 0, 1, 2, 3, 4

# Mandatory

P102 = 0

# Time Display Format. 0 - 12 Hour, 1 - 24 Hour

# Number: 0, 1

# Mandatory

P122 = 0

##############################################################################

##  Settings/Preferences/LCD Display

##############################################################################

# Backlight Brightness: Active.  Valid range is 0 - 8.  GXP1620/1625/1628/1630 only

# Active. Default is 6.

# Number: 0 - 8

# Mandatory

P334 = 6

# Backlight Brightness: Idle. Valid range is 0 - 8. GXP1620/1625/1628/1630 only

# Default is 2.

# Number: 0 - 8

# Mandatory

P335 = 2

# Active Backlight Timeout. Default is 1

# Number: 1 - 90

# Mandatory

P8356 = 1

# LCD Contrast. Default is 3

# Number: 1 - 5

# Mandatory

P6771 = 3

# Disable Missed Call Backlight. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P351 = 0

# Wide Idle Screen View. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P8346 = 0

# Caller ID Display Mode. 0 - Dynamic, 1 - Static. Default is 0

# Number: 0, 1

# Mandatory

P8473 = 0

#####################################################

# Settings/Preferences/LED control

#####################################################

# Disable VM/MSG power light flash

# Number: 0 - No, 1 - Yes. Default is 0.

# Mandatory

P8371 = 0

##############################################################################

##  Settings/Preferences/Ringtone

##############################################################################

### Call Progress Tones ###

# Syntax: f1=val,f2=val[,c=on1/off1[-on2/off2[-on3/off3]]];

# (Frequencies are in Hz and cadence on and off are in 10ms)

# System Ring Tone

# String

# Mandatory

P345 = f1=440,f2=480,c=200/400;

# Dial Tone

# String

# Mandatory

P343 = f1=350,f2=440;

# Second Dial Tone

# String

P2909 = f1=350,f2=440;

# Message Waiting Tone

# String

# Mandatory

P344 = f1=350,f2=440,c=10/10;

# Ring Back Tone

# String

# Mandatory

P346 = f1=440,f2=480,c=200/400;

# Call-Waiting Tone

# String

# Mandatory

P347 = f1=440,f2=440,c=25/525;

# Call-Waiting Tone Gain. 0 - Low, 1 - Medium, 2 - High. Default is 0

# Number: 0, 1, 2

# Mandatory

P1555 = 0

# Busy Tone

# String

# Mandatory

P348 = f1=480,f2=620,c=50/50;

# Reorder Tone

# String

# Mandatory

P349 = f1=480,f2=620,c=25/25;

# Speaker Ring Volume. Default is 7

# Number: 0 - 7

# Mandatory

P8352="3"

# Notification Tone Volume

# Number: 0 - 7. Default is 4.

# Mandatory

P8399 = 4

# Lock Speaker Volume

# 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

P8392 = 0

# Default Ringtone

# 0 - System Ringtone, 1 - Custom Ringtone 1, 2 - Custom Ringtone 2, 3 - Custom Ringtone 3, 4 - Silent, 6 - Custom Ringtone 4, 7 - Custom Ringtone 5, 8 - Custom Ringtone 6, 9 - Custom Ringtone 7, 10 - Custom Ringtone 8, 11 - Custom Ringtone 9, 12 - Custom Ringtone 10

# Number: 0, 1, 2, 3, 4, 6, 7, 8, 9, 10, 11, 12. Default is 0

P8398 = 0

# Total Number of Custom Ringtone Update Default is 3

# Number: 1 - 10

P8509 = 3

##############################################################################

##  Settings/Web Service

##############################################################################

# Use Auto Location Service. 0 - No, 1 - Yes. Default is 1

# Number: 0, 1

# Mandatory

P8338 = 1

##############################################################################

##  Settings/XML Applications

##############################################################################

# Idle Screen XML Download

# 0 - disabled, 1 - enabled:HTTP, 2 - enabled:TFTP, 3 - enabled:HTTPS. Default is 0

# Number: 0, 1, 2, 3

# Mandatory

P340 = 0

# Download Screen XML At Boot-up. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P1349 = 0

# Use Custom File Name. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P1343 = 0

# Idle Screen XML Server Path

# This is a string of up to 256 characters that should contain a path to the XML file

# It MUST be in the host/path format. For example: directory.grandstream.com/engineering

# String

P341 =

# Server Path

# String

P337 =

# Softkey Label

# String

P352 =

##############################################################################

##  Settings/Programmable Keys/Multi-Purpose Keys Settings

##############################################################################

# Transfer Mode via VPK. 0 - Blind Transfer, 1 - Attended Transfer, 2 - New Call. Default is 0

# Number: 0, 1, 2

# Mandatory

P8390 = 0

# Enable transfer via non-Transfer MPK. 0 - No, 1 - Yes. Default is 0

# Number: 0, 1

# Mandatory

P22162 = 0

##############################################################################

##  Settings/Programmable Keys/Programmable Keys

##############################################################################

################################################################################################################################

# Key Mode 14 - Speed dial via active account, for GXP1620/1625/1628/1630 only

# Key Mode 11 - BLF, 12 - Presence Watcher, 13 - Eventlist BLF, 19 - Call Park, 26 - Monitored Call Park, for GXP1628/1630 only

################################################################################################################################

#####################################################################################

# Line Keys

######################################################################################

# Line Key 1

######################################################################################

# Key Mode. Default is 0

# 0 - Line, 1 - Shared Line, 10 - Speed Dial, 11 - BLF, 12 - Presence Watcher, 13 - Eventlist BLF, 14 - Speed Dial via active account

# 15 - Dial DTMF, 16 - Voicemail, 17 - Call Return, 18 - Transfer, 19 - Call Park, 26 - Monitored Call Park, 20 - Intercom

# 21 - LDAP Search, 23 - Multicast Paging, 27 - GDS OpenDoor, 28 - Provision

# Number: 0, 1, 10-21, 23, 26-28

# Mandatory

P1363 = 0

# Account. 0 - Account 1, 1 - Account 2, 2 - Account 3

# Number: 0, 1, 2

# Mandatory

P1364 = 0

# Description. Max length allowed is 32 characters.

# String

P1465 =

# Value. Max length allowed is 64 characters.

# String

P1466 =

######################################################################################

# Line Key 2

######################################################################################

# Key Mode. Default is 0

# 0 - Line, 1 - Shared Line, 10 - Speed Dial, 11 - BLF, 12 - Presence Watcher, 13 - Eventlist BLF, 14 - Speed Dial via active account

# 15 - Dial DTMF, 16 - Voicemail, 17 - Call Return, 18 - Transfer, 19 - Call Park, 26 - Monitored Call Park, 20 - Intercom

# 21 - LDAP Search, 23 - Multicast Paging, 27 - GDS OpenDoor, 28 - Provision

# Number: 0, 1, 10-21, 23, 26-28

# Mandatory

P1365 = 0

# Account. 0 - Account 1, 1 - Account 2, 2 - Account 3

# Number: 0, 1, 2

# Mandatory

P1366 = 0

# Description. Max length allowed is 32 characters.

# String

P1467 =

# Value. Max length allowed is 64 characters.

# String

P1468 =

######################################################################################

# Line Key 3

######################################################################################

# Key Mode. Default is 0

# 0 - Line, 1 - Shared Line, 10 - Speed Dial, 11 - BLF, 12 - Presence Watcher, 13 - Eventlist BLF, 14 - Speed Dial via active account

# 15 - Dial DTMF, 16 - Voicemail, 17 - Call Return, 18 - Transfer, 19 - Call Park, 26 - Monitored Call Park, 20 - Intercom

# 21 - LDAP Search, 23 - Multicast Paging, 27 - GDS OpenDoor, 28 - Provision

# Number: 0, 1, 10-21, 23, 26-28

# Mandatory

P1367 = 0

# Account. 0 - Account 1, 1 - Account 2, 2 - Account 3

# Number: 0, 1, 2

# Mandatory

P1368 = 0

# Description. Max length allowed is 32 characters.

# String

P1469 =

# Value. Max length allowed is 64 characters.

# String

P1470 =

######################################################################################

# Customizable Softkey

######################################################################################

# Softkey 1

# Mode: 0 - Default, 10 - Speed Dial, 14 - Speed Dial via Active Account, 16 - Voice Mail, 17 - Call Return, 20 - Intercom, 21 - LDAP Search. Default is 0.

# Number

# Mandatory

P2987 = 0

# Account: 0 - Account 1, 1 - Account 2, 2 - Account 3. Default is 0

# Number

# Mandatory

P2988 = 0

# Description

# String

P2989 =

# Value

# String

P2990 =

####################################################################

# GXP1628/1630 only

####################################################################

######################################################################################

# Multi-Purpose Keys

######################################################################################

# MPK 1

######################################################################################

# Key Mode. Default is 0

# 0 - Speed dial ,1 - Busy Lamp Field, 2 - Presence Watch, 3 - Evenlist BLF,

# 4 - Speed dial via active account, 5 - Dial DTMF, 6 - Voice mail, 7 - Call return

# 8 - Transfer, 9 - Call park, 10 - Intercom, 11 - LDAP search, 13 - Multicast paging

# 16 - Monitored Call Park, 17 - GDS OpenDoor, 18 - Provision

# Number: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 16, 17, 18

# Mandatory

P323 = 0

# Account. 0 - Account 1, 1 - Account 2, 2 - Account 3

# Number: 0, 1, 2

# Mandatory

P301 = 0

# Description

# String

P302 =

# Value

# String

P303 =

######################################################################################

# MPK 2

######################################################################################

# Key Mode. Default is 0

# 0 - Speed dial ,1 - Busy Lamp Field, 2 - Presence Watch, 3 - Evenlist BLF,

# 4 - Speed dial via active account, 5 - Dial DTMF, 6 - Voice mail, 7 - Call return

# 8 - Transfer, 9 - Call park, 10 - Intercom, 11 - LDAP search, 13 - Multicast paging

# 16 - Monitored Call Park, 17 - GDS OpenDoor, 18 - Provision

# Number: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 16, 17, 18

P324 = 0

# Account. 0 - Account 1, 1 - Account 2, 2 - Account 3

# Number: 0, 1, 2

# Mandatory

P304 = 0

# Description

# String

P305 =

# Value

# String

P306 =

######################################################################################

# MPK 3

######################################################################################

# Key Mode. Default is 0

# 0 - Speed dial ,1 - Busy Lamp Field, 2 - Presence Watch, 3 - Evenlist BLF,

# 4 - Speed dial via active account, 5 - Dial DTMF, 6 - Voice mail, 7 - Call return

# 8 - Transfer, 9 - Call park, 10 - Intercom, 11 - LDAP search, 13 - Multicast paging

# 16 - Monitored Call Park, 17 - GDS OpenDoor, 18 - Provision

# Number: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 16, 17, 18

P325 = 0

# Account. 0 - Account 1, 1 - Account 2, 2 - Account 3

# Number: 0, 1, 2

# Mandatory

P307 = 0

# Description

# String

P308 =

# Value

# String

P309 =

######################################################################################

# MPK 4

######################################################################################

# Key Mode. Default is 0

# 0 - Speed dial ,1 - Busy Lamp Field, 2 - Presence Watch, 3 - Evenlist BLF,

# 4 - Speed dial via active account, 5 - Dial DTMF, 6 - Voice mail, 7 - Call return

# 8 - Transfer, 9 - Call park, 10 - Intercom, 11 - LDAP search, 13 - Multicast paging

# 16 - Monitored Call Park, 17 - GDS OpenDoor, 18 - Provision

# Number: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 16, 17, 18

P326 = 0

# Account. 0 - Account 1, 1 - Account 2, 2 - Account 3

# Number: 0, 1, 2

# Mandatory

P310 = 0

# Description

# String

P311 =

# Value

# String

P312 =

######################################################################################

# MPK 5

######################################################################################

# Key Mode. Default is 0

# 0 - Speed dial ,1 - Busy Lamp Field, 2 - Presence Watch, 3 - Evenlist BLF,

# 4 - Speed dial via active account, 5 - Dial DTMF, 6 - Voice mail, 7 - Call return

# 8 - Transfer, 9 - Call park, 10 - Intercom, 11 - LDAP search, 13 - Multicast paging

# 16 - Monitored Call Park, 17 - GDS OpenDoor, 18 - Provision

# Number: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 16, 17, 18

P327 = 0

# Account. 0 - Account 1, 1 - Account 2, 2 - Account 3

# Number: 0, 1, 2

# Mandatory

P313 = 0

# Description

# String

P314 =

# Value

# String

P315 =

######################################################################################

# MPK 6

######################################################################################

# Key Mode. Default is 0

# 0 - Speed dial ,1 - Busy Lamp Field, 2 - Presence Watch, 3 - Evenlist BLF,

# 4 - Speed dial via active account, 5 - Dial DTMF, 6 - Voice mail, 7 - Call return

# 8 - Transfer, 9 - Call park, 10 - Intercom, 11 - LDAP search, 13 - Multicast paging

# 16 - Monitored Call Park, 17 - GDS OpenDoor, 18 - Provision

# Number: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 16, 17, 18

P328 = 0

# Account. 0 - Account 1, 1 - Account 2, 2 - Account 3

# Number: 0, 1, 2

# Mandatory

P316 = 0

# Description

# String

P317 =

# Value

# String

P318 =

######################################################################################

# MPK 7

######################################################################################

# Key Mode. Default is 0

# 0 - Speed dial ,1 - Busy Lamp Field, 2 - Presence Watch, 3 - Evenlist BLF,

# 4 - Speed dial via active account, 5 - Dial DTMF, 6 - Voice mail, 7 - Call return

# 8 - Transfer, 9 - Call park, 10 - Intercom, 11 - LDAP search, 13 - Multicast paging

# 16 - Monitored Call Park, 17 - GDS OpenDoor, 18 - Provision

# Number: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 16, 17, 18

P329 = 0

# Account. 0 - Account 1, 1 - Account 2, 2 - Account 3

# Number: 0, 1, 2

# Mandatory

P319 = 0

# Description

# String

P320 =

# Value

# String

P321 =

######################################################################################

# MPK 8

######################################################################################

# Key Mode. Default is 0

# 0 - Speed dial ,1 - Busy Lamp Field, 2 - Presence Watch, 3 - Evenlist BLF,

# 4 - Speed dial via active account, 5 - Dial DTMF, 6 - Voice mail, 7 - Call return

# 8 - Transfer, 9 - Call park, 10 - Intercom, 11 - LDAP search, 13 - Multicast paging

# 16 - Monitored Call Park, 17 - GDS OpenDoor, 18 - Provision

# Number: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 16, 17, 18

P353 = 0

# Account. 0 - Account 1, 1 - Account 2, 2 - Account 3

# Number: 0, 1, 2

# Mandatory

P354 = 0

# Description

# String

P355 =

# Value

# String

P356 =

##############################################################################

##    Settings/Broadsoft/Broadsoft Directories

##############################################################################

##############################################################################

# XSI

##############################################################################

# Server Address

# String

P1591 =

# Port

# Number

P1592 =

# XSI Actions Path

# String

P2937 =

# Broadsoft Contact Download Interval. 0 - Disabled. Default is 0

# Number: 0, 5-720

P8362 = 0

# XSI Authentication Type. 0 - Login Credentials, 1 - SIP, 2 - Account 1, 3 - Account 2, 4 - Account 3. Default is 0

# Number: 0, 1, 2, 3, 4

# Mandatory

P22054 = 0

##################################

# Login Credentials

##################################

# Login Username

# String

P1593 =

# Login Password

# String

P1594 =

##################################

# SIP Credentials

##################################

# SIP Username

# String

P6772 =

# SIP User ID

# String

P22034 =

# SIP Password

# String

P6773 =

# Sort Phonebook by. 0 - Last Name, 1 - First Name. Default is 0

# Number: 0, 1

# Mandatory

P22131 = 0

######################################################################################

# Network Directories

######################################################################################

### Group Directory ###

# Disabled/Enabled. 0 - Disabled, 1 - Enabled.

# Number: 0, 1. Default is 0

# Mandatory

P2971 = 0

# Name

# String

P2972 =

### Enterprise Directory ###

# Disabled/Enabled. 0 - Disabled, 1 - Enabled.

# Number: 0, 1. Default is 0

# Mandatory

P2973 = 0

# Name

# String

P2974 =

### Group Common ###

# Disabled/Enabled. 0 - Disabled, 1 - Enabled.

# Number: 0, 1. Default is 0

# Mandatory

P2975 = 0

# Name

# String

P2976 =

### Enterprise Common ###

# Disabled/Enabled. 0 - Disabled, 1 - Enabled.

# Number: 0, 1. Default is 0

# Mandatory

P2977 = 0

# Name

# String

P2978 =

### Personal Directory ###

# Disabled/Enabled. 0 - Disabled, 1 - Enabled.

# Number: 0, 1. Default is 0

# Mandatory

P2979 = 0

# Name

# String

P2980 =

### Missed Call Log ###

# Disabled/Enabled. 0 - Disabled, 1 - Enabled.

# Number: 0, 1. Default is 0

# Mandatory

P2981 = 0

# Name

# String

P2982 =

### Placed Call Log ###

# Disabled/Enabled. 0 - Disabled, 1 - Enabled.

# Number: 0, 1. Default is 0

# Mandatory

P2983 = 0

# Name

# String

P2984 =

### Received Call Log ###

# Disabled/Enabled. 0 - Disabled, 1 - Enabled.

# Number: 0, 1. Default is 0

# Mandatory

P2985 = 0

# Name.

# String

P2986 =

#####################################################

##  Settings/External Service

#####################################################

#####################################################

##  Grandstream Door System

#####################################################

########## No.1 ##########

# No.1 - Service Type

# Number: -1 - None, 0 - GDS. Default is 0

# Mandatory

P32000 = 0

# No.1 - Account

# Number: 0 - Account 1, 1 - Account 2, 2 - Account 3. Default is 0

# Mandatory

P32001 = 0

# No.1 - System Identification

# String

P32002 =

# No.1 - System Number

# String

P32003 =

# No.1 - Access Password

# String

P32004 =

########## No.2 ##########

# No.2 - Service Type

# Number: -1 - None, 0 - GDS. Default is 0

# Mandatory

P32005 = 0

# No.2 - Account

# Number: 0 - Account 1, 1 - Account 2, 2 - Account 3. Default is 0

# Mandatory

P32006 = 0

# No.2 - System Identification

# String

P32007 =

# No.2 - System Number

# String

P32008 =

# No.2 - Access Password

# String

P32009 =

########## No.3 ##########

# No.3 - Service Type

# Number: -1 - None, 0 - GDS. Default is 0

# Mandatory

P32010 = 0

# No.3 - Account

# Number: 0 - Account 1, 1 - Account 2, 2 - Account 3. Default is 0

# Mandatory

P32011 = 0

# No.3 - System Identification

# String

P32012 =

# No.3 - System Number

# String

P32013 =

# No.3 - Access Password

# String

P32014 =

########## No.4 ##########

# No.4 - Service Type

# Number: -1 - None, 0 - GDS. Default is 0

# Mandatory

P32015 = 0

# No.4 - Account

# Number: 0 - Account 1, 1 - Account 2, 2 - Account 3. Default is 0

# Mandatory

P32016 = 0

# No.4 - System Identification

# String

P32017 =

# No.4 - System Number

# String

P32018 =

# No.4 - Access Password

# String

P32019 =

########## No.5 ##########

# No.5 - Service Type

# Number: -1 - None, 0 - GDS. Default is 0

# Mandatory

P32020 = 0

# No.5 - Account

# Number: 0 - Account 1, 1 - Account 2, 2 - Account 3. Default is 0

# Mandatory

P32021 = 0

# No.5 - System Identification

# String

P32022 =

# No.5 - System Number

# String

P32023 =

# No.5 - Access Password

# String

P32024 =

########## No.6 ##########

# No.6 - Service Type

# Number: -1 - None, 0 - GDS. Default is 0

# Mandatory

P32025 = 0

# No.6 - Account

# Number: 0 - Account 1, 1 - Account 2, 2 - Account 3. Default is 0

# Mandatory

P32026 = 0

# No.6 - System Identification

# String

P32027 =

# No.6 - System Number

# String

P32028 =

# No.6 - Access Password

# String

P32029 =

########## No.7 ##########

# No.7 - Service Type

# Number: -1 - None, 0 - GDS. Default is 0

# Mandatory

P32030 = 0

# No.7 - Account

# Number: 0 - Account 1, 1 - Account 2, 2 - Account 3. Default is 0

# Mandatory

P32031 = 0

# No.7 - System Identification

# String

P32032 =

# No.7 - System Number

# String

P32033 =

# No.7 - Access Password

# String

P32034 =

########## No.8 ##########

# No.8 - Service Type

# Number: -1 - None, 0 - GDS. Default is 0

# Mandatory

P32035 = 0

# No.8 - Account

# Number: 0 - Account 1, 1 - Account 2, 2 - Account 3. Default is 0

# Mandatory

P32036 = 0

# No.8 - System Identification

# String

P32037 =

# No.8 - System Number

# String

P32038 =

# No.8 - Access Password

# String

P32039 =

########## No.9 ##########

# No.9 - Service Type

# Number: -1 - None, 0 - GDS. Default is 0

# Mandatory

P32040 = 0

# No.9 - Account

# Number: 0 - Account 1, 1 - Account 2, 2 - Account 3. Default is 0

# Mandatory

P32041 = 0

# No.9 - System Identification

# String

P32042 =

# No.9 - System Number

# String

P32043 =

# No.9 - Access Password

# String

P32044 =

########## No.10 ##########

# No.10 - Service Type

# Number: -1 - None, 0 - GDS. Default is 0

# Mandatory

P32045 = 0

# No.10 - Account

# Number: 0 - Account 1, 1 - Account 2, 2 - Account 3. Default is 0

# Mandatory

P32046 = 0

# No.10 - System Identification

# String

P32047 =

# No.10 - System Number

# String

P32048 =

# No.10 - Access Password

# String

P32049 =
