Viking Doorbox E-10A-EWP and E20B-EWP

Viking Doorbox E-10A-EWP

Product Details approx COST $240.00   /   MSRP $485.00

Works with Cisco SPA122 ATA

The E-10A-EWP is a telephone line powered entry phone designed to provide two-way handsfree communication. When the “Call” button is pressed, the E-10A-EWP will come off-hook and will remain off-hook until a CPC signal is detected, the programmed timeout has elapsed, a busy signal is detected, or the call goes silent, making the unit automatically disconnect.

The E-10A-EWP can be used with a Viking K-1900-5 or K1900-30 dialer, or connected directly to a CO line or analog PABX / KSU station when programmed as a ringdown circuit. If a line or station is not available, a Viking DLE-200B ringdown circuit can be used. One to four E-10A-EWP speaker phones can share an existing phone line in a house or small business when used with a Viking C-200, C-250 or C-2000B Entry Phone Controller.

The E-10A-EWP is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installations where the unit is exposed to precipitation or condensation. EWP products feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming. For more information, see DOD 859.

Applications

• Door or gate communication, business delivery entrances
• Provide unique front and back door chimes and paging when used with a Viking C-2000B and a Viking SLP-1 or SLP-4
• Residential, commercial, and industrial door security
• Use with a Viking K-1900-5 or K-1900-30 for automatic speed dialing on telephone lines or analog PABX / KSU station ports
• Use on any analog PABX station port with programmable ringdown capability

Downloads

• Product Manual(DOD 210)

Features

• Alternate action call button to place or cancel a call
• Intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
• Telephone line powered
• Adjustable microphone and speaker volume
• Programmable maximum call length
• Selectable auto-answer feature allows remote monitoring
• Two-way handsfree communication
• Programmable VOX (mic / speaker) switching speed
• Vandal resistant black powder painted aluminum face plate with heavy duty 316 stainless steel call button and mounting gasket
• Flush mount using the included rough-in box or surface mount using a VE-5×5 Surface Mount Box (DOD 424)
• Enhanced Weather Protection (EWP), designed to meet IP66 Ingress Protection Rating, see DOD 859

Specifications

• Power: Telephone line powered (18VDC / 20mA minimum)
• Overall Dimensions: 5″ x 5″ x 2.25″ (127mm x 127mm x 57.2mm)
• Rough-In Box Dimensions: 4″ x 4″ x 2.15″ (102mm x 102mm x 55mm)
• Shipping Weight: 2 lbs (0.91 kg)
• Operating Temperature: -30°F to 150°F (-34°C to 65°C)
• Humidity: Up to 100%
• Maximum Speaker Volume: 70dB SPL @ 1m
• Ring Voltage: 25VRMS minimum
• Minimum CPC Disconnect Time: 300ms
• REN: 0.8A
• Connections: (2) Gel-filled butt connectors

Certifications

• EWP
• IP66
• FCC Part 68
• FCC Part 15

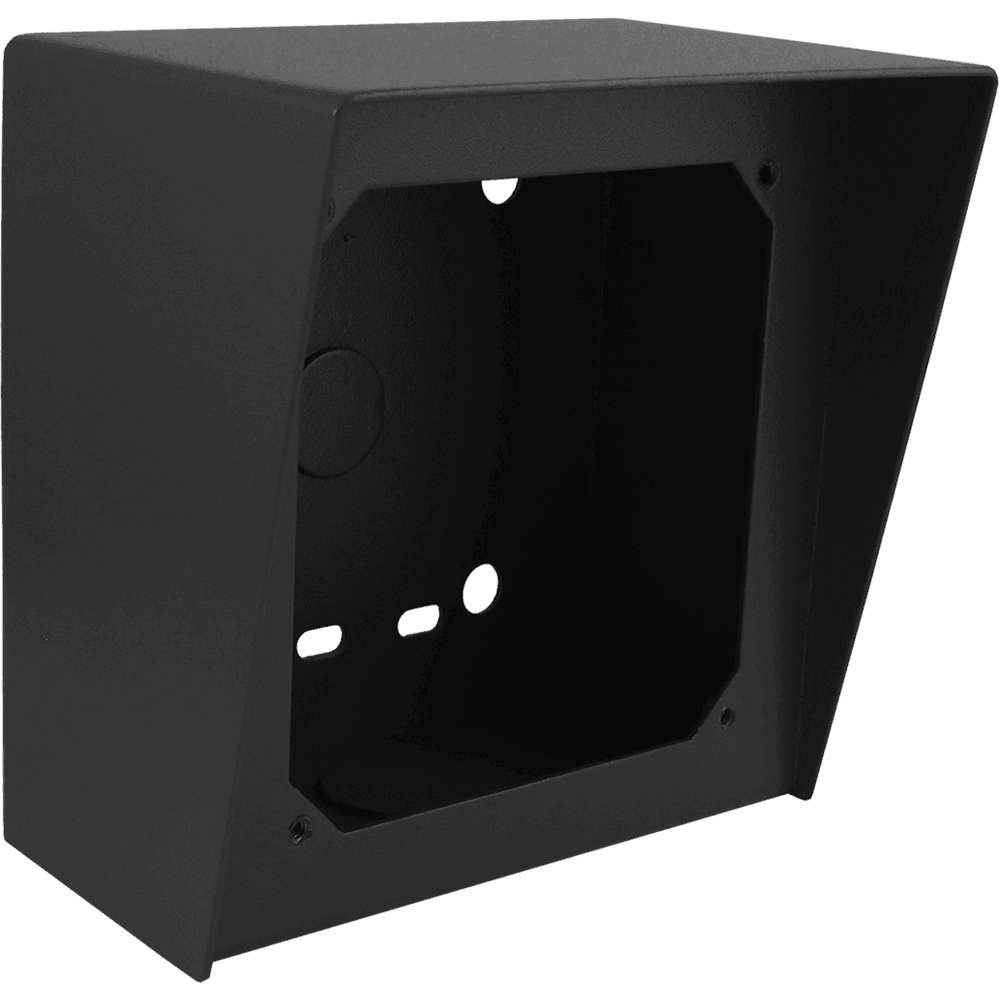

Use the following backbox for surface mount

Viking Electronics E-20B-EWP - Speaker Phone with Push Button, UV Stable Light Gray Plastic, Surface Mount Only with Enhanced Weather Protection (EWP)

Works with Cisco ATA SPA122

Your Price    $237.00
MSRP          $484.00

USER MANUAL

=======================================================================
