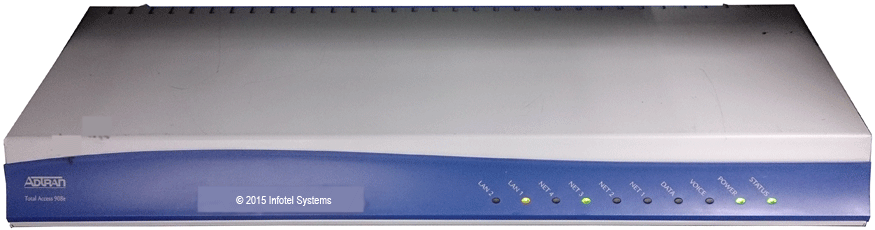

| Note: Status lights shown are configured for SIP via LAN 1 (ETH 0/1) to PRI (NET 3). | ||
Light |
Status |
Description / / Suggested Action to Take |
| STATUS | Unlit | Bootstrap Mode - The boot code cannot be booted. During bootstrap mode VOICE, DATA, NET 1 - 4 LED's will be red. |
| Green (Flashing) | Unit is powering up. On power-up the STATUS LED flashes rapidly for 5 seconds, during which time the user may escape to bootstrap mode from the CRAFT port. | |
| Green (Solid) | Power is on and the unit is functioning normally. | |
| POWER | Unlit | No power. |
| Green (Solid) | AC power is operational. | |
| Amber | AC power has failed. Battery backup is active. | |
| VOICE | Unlit | All ports are inactive. |
| Green (Solid) | At least one port is off hook. | |
| Green (Flashing) | At least one port is ringing. | |
| Amber | At least one port is in test. | |
| Red | Fault condition. | |
| DATA | Unlit | Port is administratively shut down. |
| Green | Layer 2 is up on a NET interface. | |
| Red | Layer 2 is down on a NET interface. | |
| NET 1 - 4 | Unlit | Port is administratively shut down. |
| Green | Link is up and in normal operation. | |
| Amber | Port is in test. | |
| Red | An alarm condition is present. | |
| LAN 1 - 2 | Unlit | Link is down or port is administratively shut down. |
| Green (Solid) | 10BaseT link is up. | |
| Green (Flashing) | 10BaseT link is up and traffic is flowing. | |

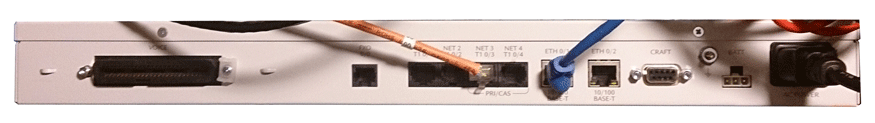

| ETH 0/1 - 0/2 (Rear Panel) |
Amber (Solid) | 100BaseT link is up. |
| Amber (Flashing) | 100BaseT link is up and traffic is flowing. | |
