Grandstream GXW4501 SIP PRI Setup & Programming 12-2021 SR

Modified on Tue, Dec 21, 2021 at 4:14 PM

This is the process to program a Grandstream GXW4501 PRI Box

Connect the WAN port to the Internet

Power ON unit

See IP in Unit Display

Enter IP address to access

User Name = admin

Password = PRINTED ON MAC SERVICE STICKER on side of unit

Prompts for Password change (Larry1988#)

see SS support doc

https://docs.skyswitch.com/en/articles/804-how-to-configure-a-grandstream-gxw450x-pri-gateway-with-a-digital-pbx

See GXW4501 User Manual attached

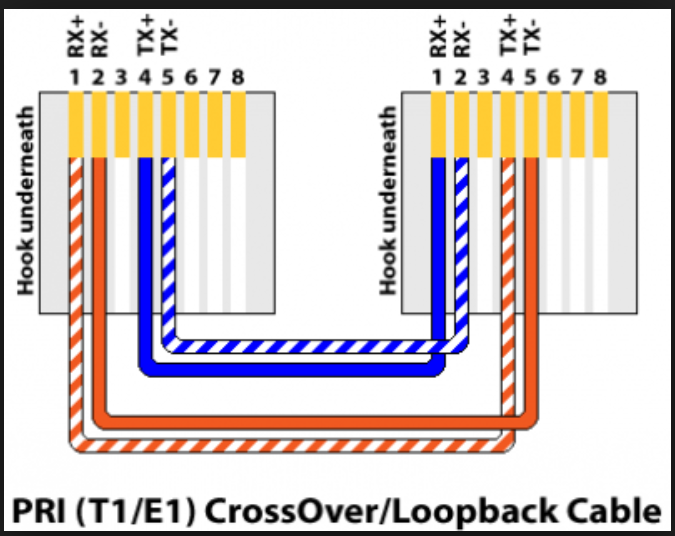

NOTE: YOU MUST Use a PRI Cross-Over Cable between the GXW4501 and the PBX PRI Card

Attachments (1)

gxw4500_user_manual.pdf
