Cyberdata Video Doorbox & Yealink T58A Phone Integration 2/2020

Attached are the (2) Documents for Cyber Data Video Door Intercom and the Yealink Integration Guide

SR

Yealink T58A

Cyberdata SIP h.264 Video Outdoor Intercom

Advanced Tab for telephone (Yealink T58A)

static.firmware.url="https://sonictel-prov-files.s3.us-east-2.amazonaws.com/yealink-t58a/T58-58.84.0.15.rom"

features.doorphone.1.device_model="4"

features.doorphone.1.display_name="DoorPhone"

features.doorphone.1.phone_number="1048"

features.doorphone.1.unlock_pin="123"

features.doorphone.1.full_screen="1"

features.doorphone.1.send_audio="1"

features.doorphone.1.send_video="1"

features.doorphone.1.videopreview.enable="0"

features.doorphone.1.autopreview.enable="0"

**The extension phone number 1048 is an example and should be changed to reflect the actual ext number

**The unlock pin you change to reflect what has been programmed into the Cyberdata unit (default = 123)

** Model 4 equals Cyberdata integration

** Must update to T58-58.84.0.15 Firmware for DTMF Unlock to work

These setting are found under FEATURES > DOORPHONE Tab in Yealink Web Gui

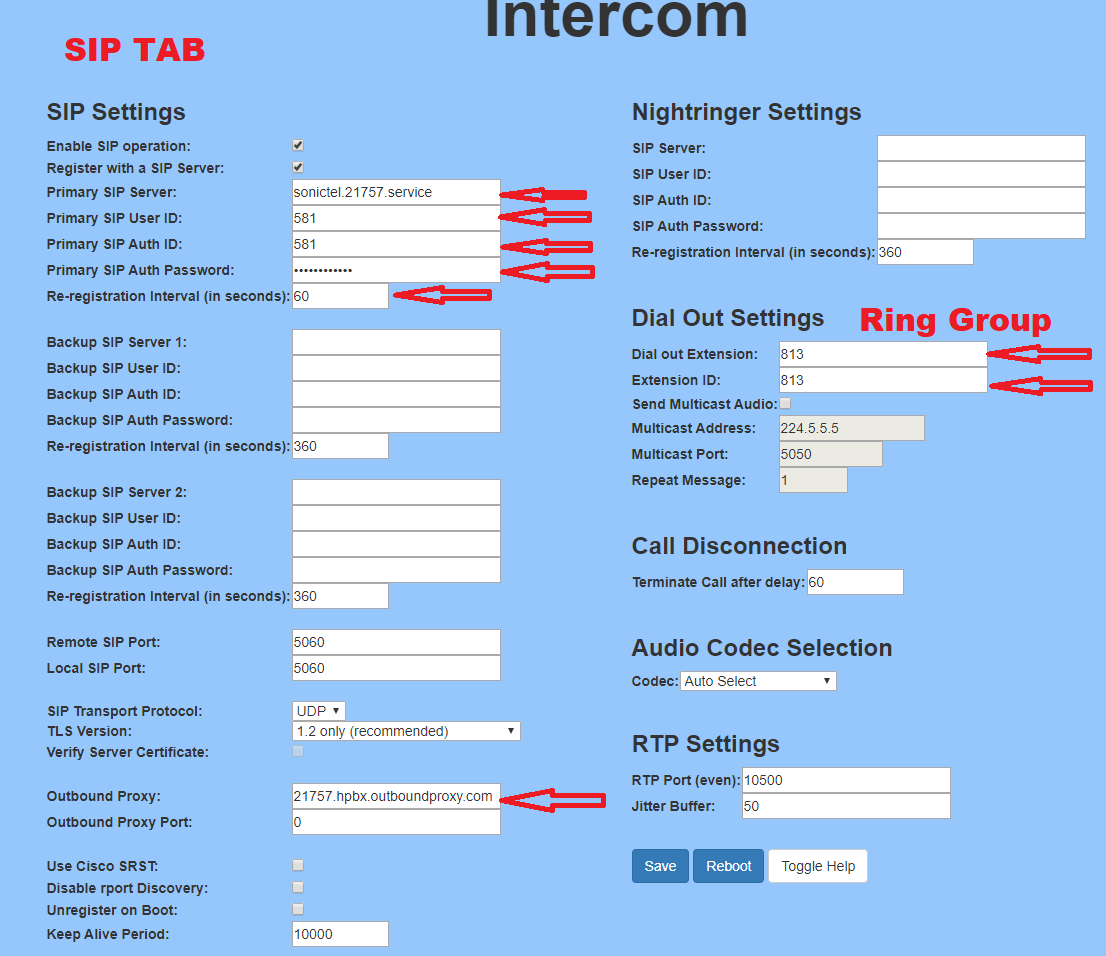

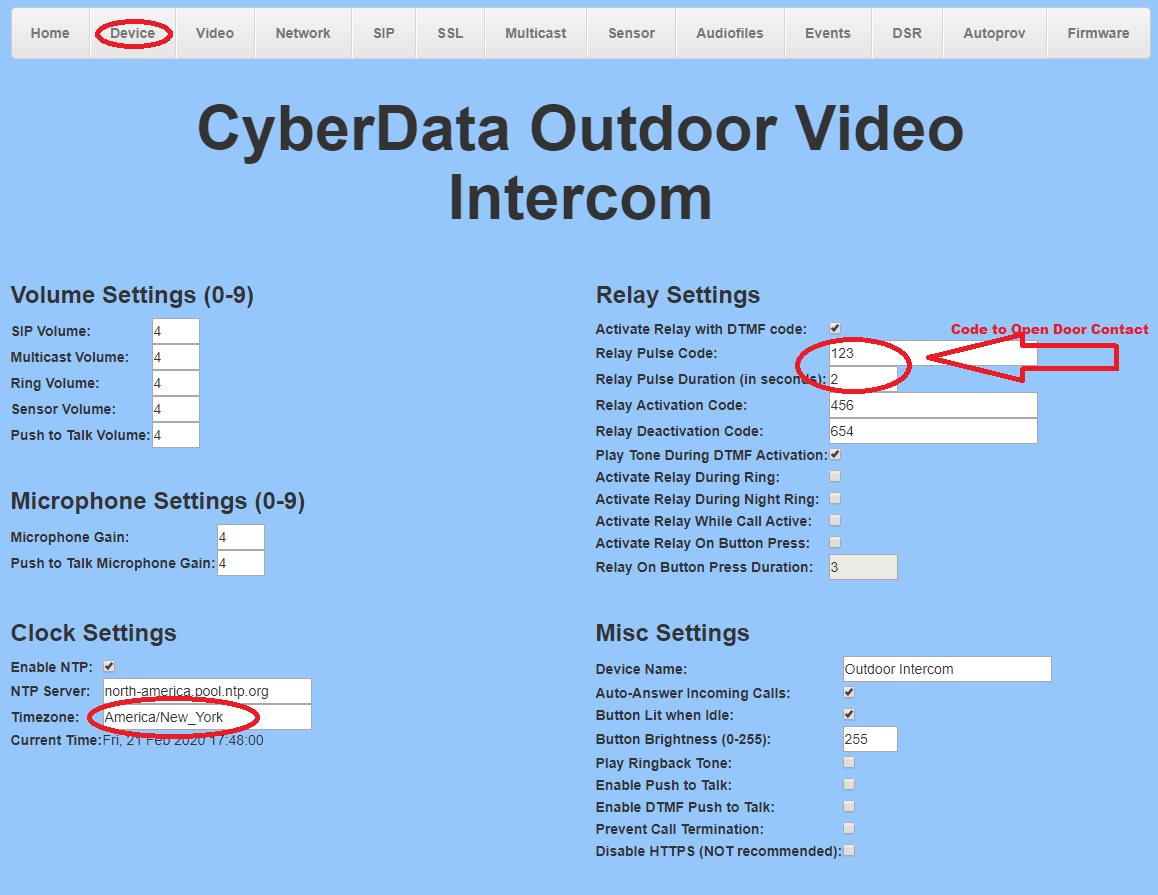

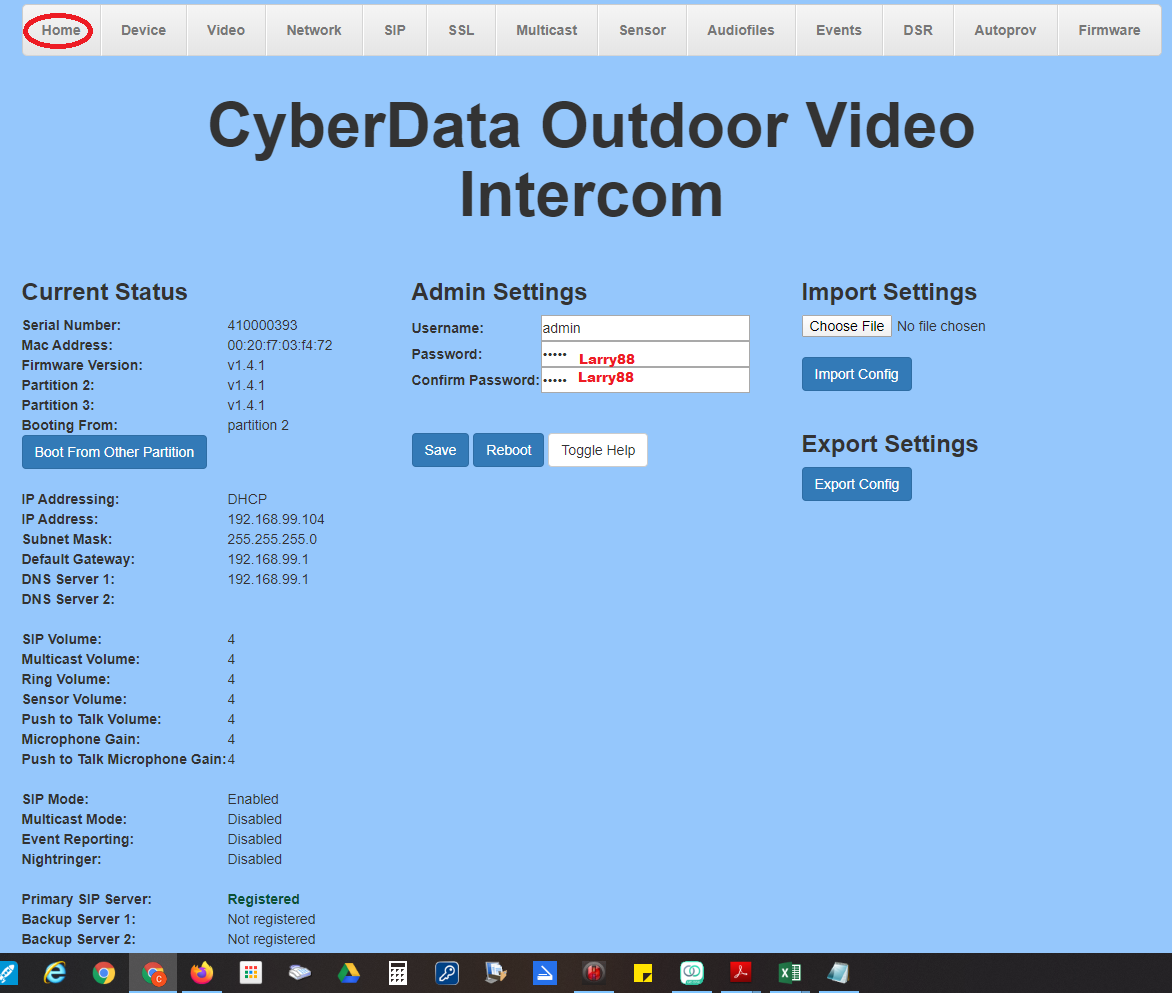

CYBERDATA SETTINGS:
