Provision Panasonic TGP5xx Cordless Sonictel PBX 10/17/2019

To provision Panasonic TGP5xx series cordless phone for Sonictel PBX

See ADMIN MANUAL ATTACHED

Goto: Tabs

The phones web gui credentials

==========================================

user = admin

pass; adminpass ( all lowercase) (default from factory)

If coming from CD then the password is either 1988 or the FTP password of the CD PBX context

If on SS then password = 649649  ( this is different than the normal configuration, because it requires 6 digits)

==========================================

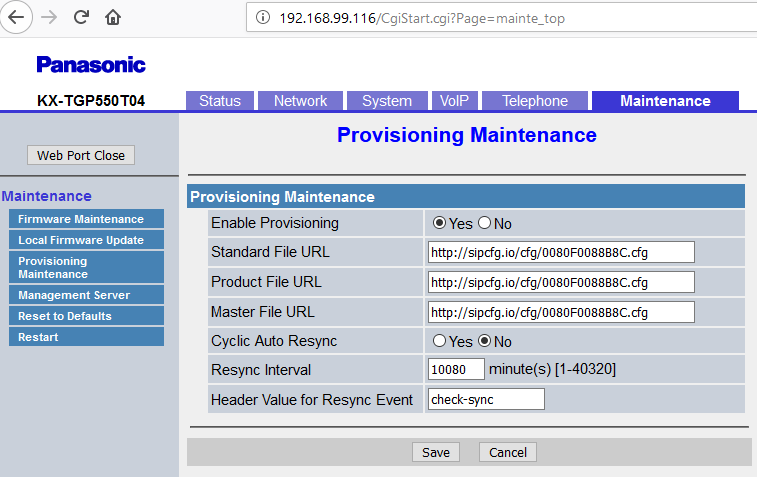

MAINTENANCE > Provisioning Maintenance

You MUST fill in the provisioning string in ALL three fields, as detailed below:

The format is (use the mac of the actual phone base unit you are configuring)

http://sipcfg.io/cfg/0080F0088B8C.cfg

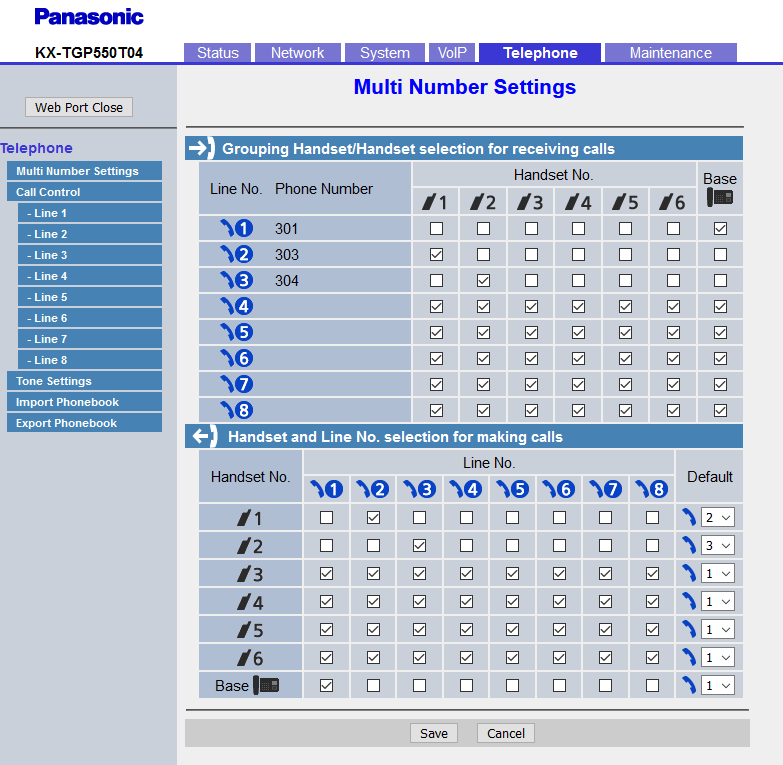

For reference below is the Lines to Handset assignment view

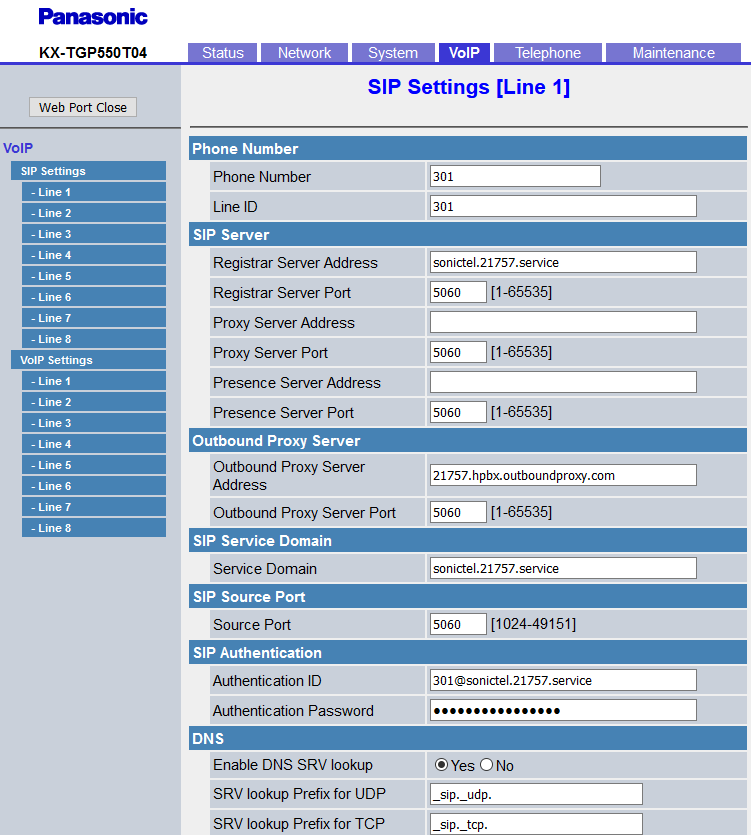

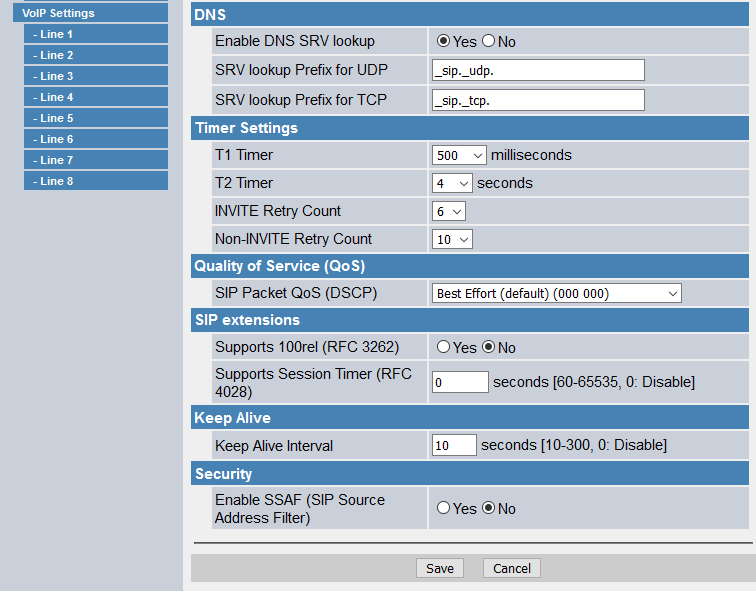

Below is the SIP registration screen for reference
